HDBaseT HDMI Range Extender Transmitter, RS-232, IR, 4K60, 330'

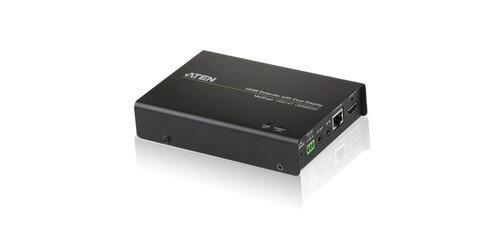

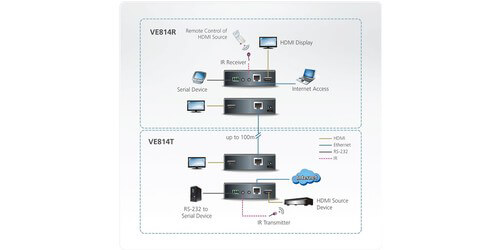

The ATEN VE814T HDBaseT HDMI Range Extender Transmitter supports RS-232 serial devices, bi-directional infrared signal transmission, Ethernet communication, and can transmit to distances up to 330'. To connect the included transmitter with a receiver (not included) the user can attach their desired length of a single Cat 5e/6 cable (up to 330', not included). This device can extend high quality HDMI video with resolutions up to 4K60 (4:2:0); with the capability of a display coming from the VE814T transmitting unit.
This unit extends Ethernet communication with pass-through port for Internet connectivity, allowing the user to go online. With RS-232 support, this device also allows the user to control the HDMI display device from the local transmitter. This HDCP compatible unit supports 3D, Deep Color, and 4K, ensuring pristine video and granting the user the highest quality video from their HDMI displays. Needless to say, the VE814T Transmitter from ATEN is the perfect addition to an AV setup and is ideal for use with public displays, home theaters, and business or classroom presentations.

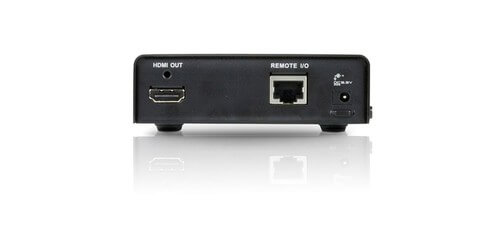

- Input: HDMI, Max. Distance 5.9'
- Output: 1 x HDMI, Cat 5e, 6, 6a
- Resolutions: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0), 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
- Supported Distance: Up to 4K@230' (Cat 5e/6) / 330' (Cat 6a), 1080p@330'
- Data Rate: 10.2 Gbps (3.4 Gbps per lane)
- Pixel Clock: 340 MHz
- Compliance: HDMI (3D, Deep Color, 4K), HDCP Compatible, (CEC)
- EDID Expert selects the optimum EDID settings for smooth power-up and highest quality display
- Audio In/Out: 1 x HDMI
- RS-232: 1 x Terminal Block, 3 Pole
- IR: 2 x Mini Stereo Jack
- Ethernet: 1 x RJ-45
- Implements HDBaseT extension technology with Anti-Jamming
- Built-in 8KV / 15KV ESD protection (Contact voltage 8KV
- Air voltage 15 KV)
- Supports wide screen formats
- Power Connectors: 1 x DC Jack
- Power Consumption: 5.3V DC, 8.5W
- Weight: 1.01 lb.
- Dimensions (LxWxH): 5.58" x 4.06" x 1.18"
- Included Accessories: Power Adapter, Mounting Kit, User Instructions
- Warranty: 3 years
