HDBaseT HDMI Range Extender Receiver, RS-232, IR, 4K60, 330'

Satisfaction Guaranteed!
Part #: VE814R
Your Price: $445.00
0 out of 5 based on 0 ratings.

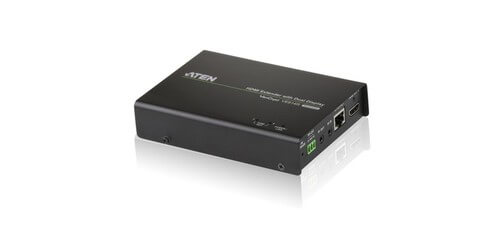

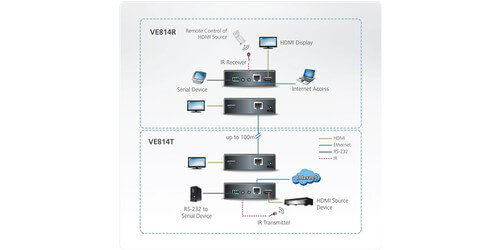

The ATEN VE814R HDBaseT HDMI Range Extender Receiver supports RS-232 serial devices, bi-directional infrared signal transmission, Ethernet communication, and can receive from distances up to 330'. To connect the included receiver to a transmitter (not included) the user can attach their desired length of  a single Cat 5e/6 cable (up to 330', not included). This device can extend high quality HDMI video with resolutions up to 4K60 (4:2:0); with the capability of dual displays from the VE814R receiving unit and an additional display coming from a transmitting unit (compatible with VE814T, not included).

This unit extends Ethernet communication with pass-through port for Internet connectivity, allowing the user to go online. With RS-232 support, this device also allows the user to control the HDMI source device from the remote receiver. This HDCP compatible unit supports 3D, Deep Color, and 4K, ensuring pristine video and granting the user the highest quality video from their HDMI displays. Needless to say, the VE814R Receiver from ATEN is the perfect addition to an AV setup and is ideal for use with public displays, home theaters, and business or classroom presentations.

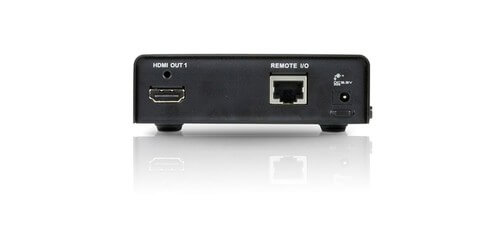

  • Video Output: 2 x HDMI
  • Video Input: Cat 5e, 6, 6a
  • Resolutions: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0), 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
  • Supported Distance: Up to 4K@230' (Cat 5e/6) / 330' (Cat 6a), 1080p@330'
  • Data Rate: 10.2 Gbps (3.4 Gbps per lane)
  • Pixel Clock: 340 MHz
  • Compliance: HDMI (3D, Deep Color, 4K), HDCP Compatible, (CEC)
  • EDID Expert selects the optimum EDID settings for smooth power-up and highest quality display
  • Audio Out: 2 x HDMI

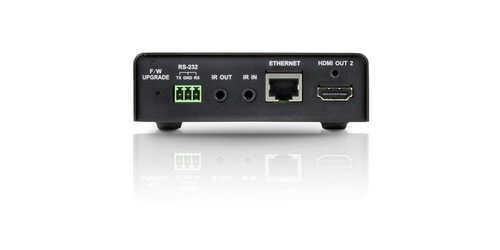

  • RS-232: 1 x Terminal Block, 3 Pole
  • IR: 2 x Mini Stereo Jack
  • Ethernet: 1 x RJ-45
  • Implements HDBaseT extension technology with Anti-Jamming
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV
  • Air voltage 15 KV)
  • Supports wide screen formats
  • Power Connectors: 1 x DC Jack
  • Power Consumption: 5.3V DC, 13.3W
  • Weight: 1.01 lb.
  • Dimensions (LxWxH): 5.58" x 4.06" x 1.18"
  • Included Accessories: Power Adapter, Mounting Kit, User Instructions
  • Warranty: 3 years
