HDMI HDBaseT Range Extender Tx/Rx Kit, USB 2.0, Up to 330'

Satisfaction Guaranteed!
Part #: VE813
Your Price: $1,250.00
0 out of 5 based on 0 ratings.

Featuring the ATEN VE813 HDMI Range Extender Transmitter and Receiver Kit with 4K30 (4:4:4) up to 4K60 (4:2:0) transmitting to distances up to 330 feet away from the source. This kit supports HDBaseT and ATEN's patented ExtremeUSB technology. It allows the user to connect the included local transmitter to the included remote receiver by way of a Cat 5e, 6, 6a cable (Not Included). These all-metal units are manufactured with HDBaseT Anti-Jamming which reduces signal interference while high-quality video is being transmitted.

These HDCP compatible devices are equipped with USB connectors that support touch panel control. They also provide file transfer functionality, syncing folders and files between desktop and portable computers. As well as supportting 3D, Deep Color and 4K image resolutions as well as audio features such as Dolby True HD and DTS HD Master Audio. This VE813 transmitter and receiver kit from ATEN is the perfect solution for public displays, home theaters, and corporate settings.

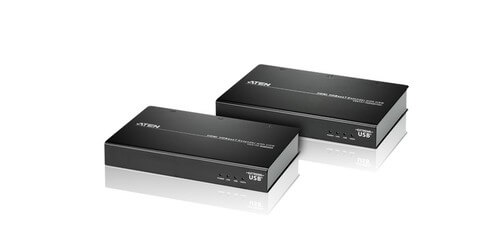

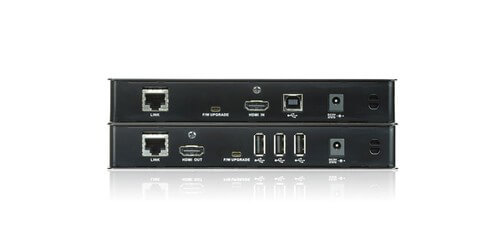

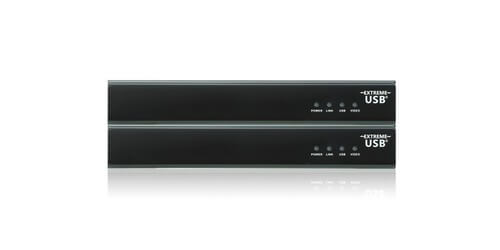

  • This Kit Comes with a VE813T HDMI Transmitter and a VE813R HDMI Receiver

  • Transmitter Video Input: HDMI, Max. Distance 5.9'
  • Receiver Video Output: HDMI

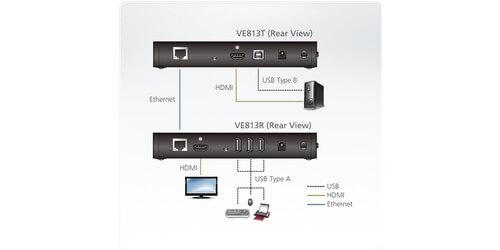

  • Unit to Unit: Cat 5e, 6, 6a
  • Video Resolutions: 4K @ 60Hz (4:2:0), 4K @ 30Hz (4:4:4)
  • Supported Distance: Up to 4K@230' (Cat 5e/6) / 330' (Cat 6a), 1080p@330'
  • Data Rate: 10.2 Gbps (3.4 Gbps per lane)
  • Pixel Clock: 340 MHz
  • Compliance: HDMI (3D, Deep Color, 4K), HDCP Compatible, (CEC)
  • Tx/Rx Audio In/Out: HDMI
  • Tx Control: 1 x USB Type B Female, Transfer Rate: USB 2.0 (Up to 30 Mbps)
  • Rx Control: 3 x USB Type A Female, Transfer Rate: USB 2.0 (Up to 30 Mbps)
  • Power Connectors: 1 x DC Jack
  • Power Consumption: 5V DC, 5.75W*
  • Weight: 1.37 lb.
  • Dimensions (LxWxH): 7.17 x 4.57 x 1.13"
  • Included Accessories: 2x Power Adapters, HDMI & USB Cable, Mounting Kit, User Instructions
  • Warranty: 3 years
  • *For the VE813R, power consumption will be 13.25W when all 3 USB connectors are occupied.
