HDMI/USB, Cat 5e Range Extender Transmitter and Receiver Kit, 200'

Satisfaction Guaranteed!
Part #: VE803
Your Price: $222.00
0 out of 5 based on 0 ratings.

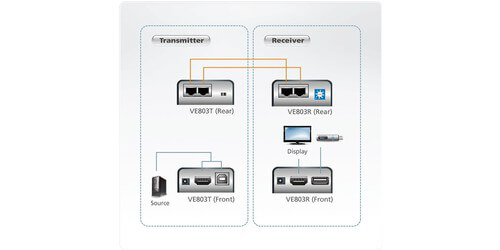

Featuring the VE803 HDMI/USB, Cat 5e Range Extender Transmitter and Receiver Kit from ATEN. This range extender unit can transmit up to 200 feet away from the HDMI source. The included local transmitter and remote receiver can be connected via a Cat 5e cable (Not Included). The cable transmits the 1080p HDMI video signal from the local unit to the remote unit. This kit also features USB connectors that are capable of extending any USB device between the units.

The USB ports also support touch panel control, allowing the user to control the local unit from the remote display or control the remote display through the local unit. Another quality of the USB is that it allows the local unit to be powered by way of a USB cable when the device is connected to an appropriate source device. While the transmitter has the ability to power from USB, the receiver has an 8 segment equalization (EQ) adjustment switch that can optimize the quality of the display. The ATEN VE803 Transmitter and Receiver Kit is an ideal solution for theater displays (home or public), or for restaurant menus, banking ads, stock market info, and flight boards.

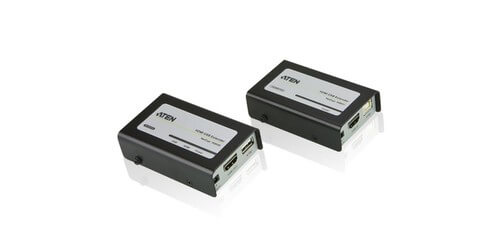

  • This kit comes with a VE800AT HDMI Transmitter and a VE800AR HDMI Receiver

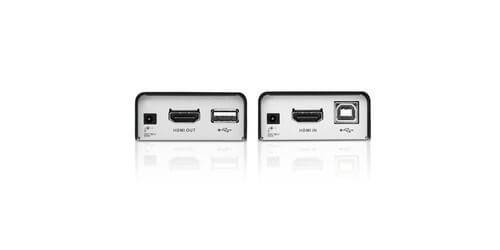

  • Transmitter Video Input: 1 x HDMI Type A Female
  • Receiver Video Output: 1 x HDMI Type A Female
  • Tx USB Port: USB Type B
  • Rx USB Port: USB Type A

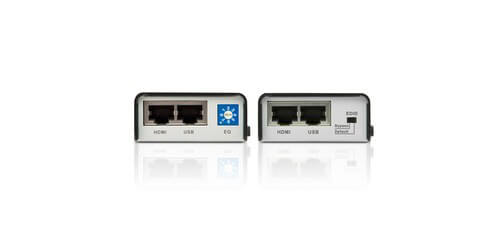

  • Unit to Unit: 2 x RJ-45 Female
  • Resolutions/Distance: Up to 1080p@131', 1080i@196.8'
  • Data Rate: 6.75 Gbps (2.25 Gbps Per Lane)
  • Pixel Clock: 225 MHz
  • Tx EDID Selection: 1 x slide switch
  • Rx EQ Switch: 1 x 8 position switch
  • Compliance: HDMI (3D, Deep Color), HDCP Compatible
  • Tx/Rx Audio In/Out: HDMI Type A Female
  • Power Connectors: 1 x DC Jack
  • Tx Power Consumption: 5V DC, 1W
  • Rx Power Consumption: 5V DC, 0.39W
  • Support Dolby True HD and DTS HD Master Audio
  • Built-in 8KV/15KV ESD protection
  • Transparent USB Support supports all USB 2.0 full speed device (up to 12 Mbps)
  • Supports wide screen formats
  • Housing: Metal
  • Weight: 0.35 lb
  • Dimensions (LxWxH): 3.54" x 2.26" x 0.94"
  • Included Accessories: Power Adapter, USB Cable 5.9', Mounting Kit, User Instructions
  • Warranty: 3 years
