HDMI HDBaseT Lite Range Extender Tx/Rx Kit, 4K30 (4:4:4), up to 230'

Satisfaction Guaranteed!
Part #: VE801
Your Price: $420.00
0 out of 5 based on 0 ratings.

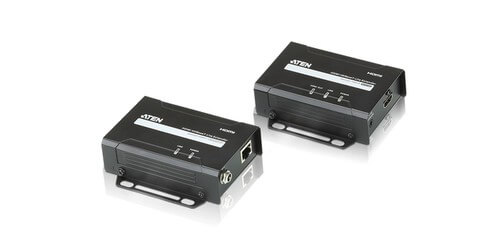

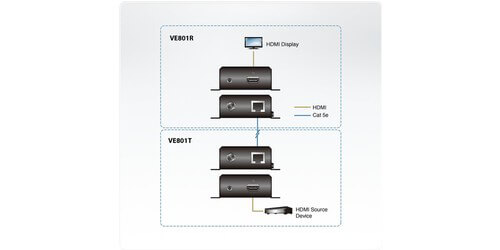

Featuring the ATEN VE801 HDMI HDBaseT Lite Range Extender Transmitter and Receiver Kit with 4K30 (4:4:4) up to 4K60 (4:2:0) transmitting to distances up to 230 feet. This kit allows the user to connect the included local transmitter to the included remote receiver by way of a Cat 5e, 6, or 6a cable (Not Included). These HDCP compatible devices support 3D, Deep Color and 4K image resolutions as well as audio features such as Dolby Digital 5.1 and DTS HD. They are also manufactured with HDBaseT Anti-Jamming which reduces signal interference while high-quality video is being transmitted.

Another great feature of these units is the EDID configuration settings for high-quality display, smooth power ups, and use of the best video resolution across multiple screens. The design of this transmitter and receiver provides for a simple method for a clean mounting in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. Those grooves also make it easier for the user to see the LED status lights. This VE801 transmitter and receiver kit from ATEN is the perfect solution for home theaters, public displays, and corporate settings or virtually any set up that requires superior HDMI to be transmitted across long distances.

  • This Kit Comes with a VE801T HDMI Transmitter and a VE801R HDMI Receiver

  • Transmitter Video Input: HDMI, 5.9'
  • Receiver Video Output: HDMI
  • Unit to Unit: Cat 5e, 6, or 6a
  • Resolutions Range: Up to 4K@115' (Cat 5e/6) / 131' (Cat 6a), 1080p@195' (Cat 5e/6) / 230' (Cat 6a)
  • Supported 4K Resolutions: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0), 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
  • Bandwidth: 340 MHz
  • Data Rate: 10.2Gbps (3.4Gbps per lane)
  • Compliance: HDMI (3D, Deep Color, 4K), HDCP Compatible, CEC
  • Audio Input: HDMI
  • Power Connectors: 1 x DC Jack with locking
  • Tx Power Consumption: 5V DC, 1.85W
  • Rx Power Consumption: 5V DC, 4.23W
  • Housing: Metal
  • Weight: 0.55 lb.
  • Dimensions (LxWxH): 4.91" x 3.43" x 1.18"
  • Included Accessories: 2x Power Adapters, User Instructions
  • Warranty: 3 years
