ATEN VE500QKit

VGA Cat5 Transmitter and Receiver Kit, Deskew, Audio - 984'

Satisfaction Guaranteed!
Part #: VE500QKit
Regular Price: $687.50
Instant Savings: -$137.50
Quantity: $550.00
0 out of 5 based on 0 ratings.

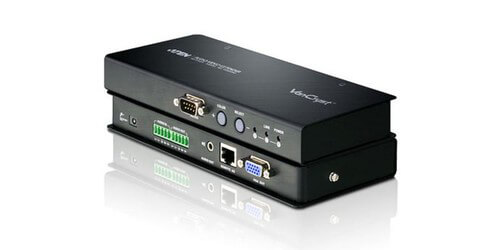

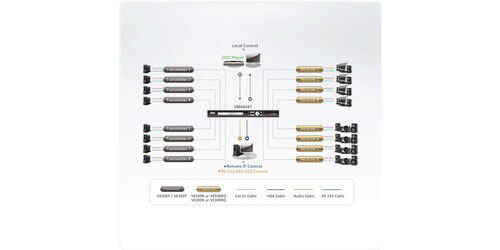

The VE500QKit From ATEN is a VGA with Audio, Cat5 Transmitter and Receiver Kit (VE500T and VE500QR) with deskew function, that has been designed to transmit and receiver VGA and Audio signals up to 984'. The Transmitter in this kit (VE500T) has been designed to be integrated with the ATEN VM0808T/VM1616T Matrix Switch (not included) to allow the extension of signals up to 984', from the source to the switch via CAT5e cables. It can be used in installations such as construction sites, factory floors, and control and security centers, where the system equipment can reside in a secure place while the display is located in public view. The transmitter supports wide screens, is rack-mountable, and provides an RS-232 channel. The VE500T includes a power adapter, VGA EDID emulator, mounting kit, and terminal blocks.

The second half of this kit is the VE500RQ Receiver unit, that offers balanced audio for input and output, that helps maximize you audio quality over the entire transmission length. This receiver features RS-232 connection to give it additional flexibility, allowing users to use serial touch screen and bar code readers. It is designed to be used with systems that integrate with the ATEN VM0808T A/V matrix switch (not included), or with the ATEN VE500T transmitter as a point-to-point stand-alone A/V extender. To provide optimum video quality over large distances, the VE500RQ supports RGB delay tuner functionality – allowing you to manually synchronize the RGB signals. It also provides a line synchronization function that corrects color phase and timing errors that occur over long distance transmissions, and stores the settings. The VE500RQ comes with a rack mount kit, grounding wire, a power adapter, and a terminal block.

  • This Kit Includes the ATEN VE500T Transmitter Unit and the VE500QR Receiver Unit
  • Transmitter Specs:
  • Input: VGA
  • Output: VGA, RJ-45
  • Bandwidth: 300 Mhz
  • Resolutions: Up to 1920 x 1200 @60Hz
  • Resolution Range: 1920 x 1200 at 98' & 1280 x 1024 at 984'
  • Audio Input: Balanced: Captive Screw Connector, 5 pole (Green) / Stereo: Mini Stereo Jack Female (Green)
  • Control: RS-232 (DB-9 Female)
  • Adjustable gain control: manually adjust signal strength to compensate for distance
  • Provides RS-232 channel
  • Supports wide screen
  • Rack Mountable
  • Power Consumption: 5.3V DC, 2.98W
  • Dimensions (LxWxH): 7.95 x 3.4 x 0.98" Weight: 1.06lbs Included Accessories: VGA EDID Emulator, Power Adapter, Mounting Kit, Terminal Blocks, User Instructions
  • Warranty: 3 Years
  • Receiver Specs:
  • Input: RJ-45
  • Output: VGA
  • Bandwidth: 300 Mhz
  • Resolutions: Up to 1920 x 1200 @60Hz
  • Resolution Range: 1920 x 1200 at 492' & 1280 x 1024 at 984'
  • Audio Outputs: Balanced: Captive Screw Connector, 5 pole (Green) / Stereo: Mini Stereo Jack Female (Green)
  • Control: RS-232 (DB-9 Male)
  • Deskew Function: Automatically synchronizes the time delay of RGB signals to compensate for distance
  • Power Consumption: 5.3V DC, 5.63W
  • Dimensions (LxWxH): 7.95 x 3.4 x 0.98"
  • Weight: 1.06lbs
  • Included Accessories: Power Adapter, Rack Mount Kit, Terminal Block, Grounding Wire, User Guide
  • Warranty: 3 Years
