HDMI to 3G/HD/SD-SDI Converter

Satisfaction Guaranteed!
Part #: VC840
Your Price: $364.00
0 out of 5 based on 0 ratings.

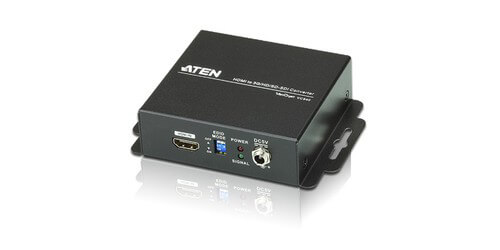

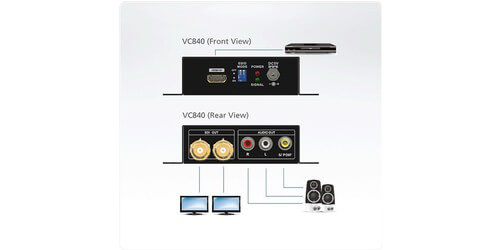

The VC840 HDMI to 3G-SDI/Audio Converter from ATEN is a affordably price solution that provides users a professional way to convert high definition signals in real time. This device works by converting HDMI signals into 3G/HD/SD-SDI signals with a 100% signal conversion that guarantees no loss of quality for both the audio and video transmission. It features automatic detection of the 3G-SDI signals, uses reclocking technology for cascading to provide longer transmission runs, and uses a locking power connector for secure communications. Additionally it provides 2 low jitter SDI outputs for dual display applications, making this a dependable solution to convert signals with confidence when monitoring in any post production or broadcast type application.

Supported SDI Formats:

  • SD-SDI (SMPTE 259M, up to 270Mbps)
  • HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
  • 3G-SDI (SMPTE 424M, 425M level A, up to 2.97Gbps)

Video Support:

  • 525i@59.96, 625i@50
  • 720p@50/59.94/60
  • 1080i@50/59.94/60
  • 1080p@23.97/24/25/29.97/30/50/59.94/60
  • 2048 x 1080

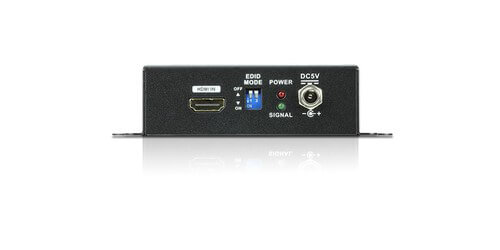

  • Input: HDMI Type A Female

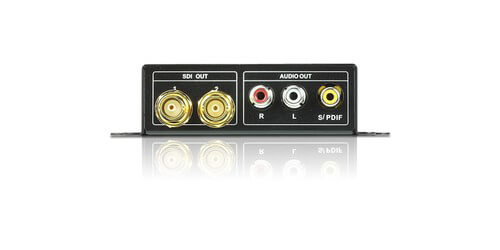

  • Outputs: 2 BNC Gold SDI
  • Maximum Data Rate: 2.97Gbps
  • Supported Resolutions: up to 1080p
  • Maximum Pixel Clock: 148.5MHz
  • Signal Range: 3G-SDI: 295', HD-SDI: 492', SD-SDI: 984'
  • SDI Formats Supported: SD-SDI, HD-SDI, 3G-SDI
  • Audio Output: 2 x RCA red/white analog, 1 x RCA yellow digital
  • Power Consumption: 5 V DC, 3.5 W
  • Housing Material: Metal
  • Dimensions (LxWxH): 4.8 x 4.2 x 1.2"
  • Weight: 10.2 oz
  • Included Accessories: Power Adapter, User Instructions
  • Warranty: 3 years
