3G/HD/SD-SDI to HDMI Converter

Satisfaction Guaranteed!
Part #: VC480
Your Price: $364.00
0 out of 5 based on 0 ratings.

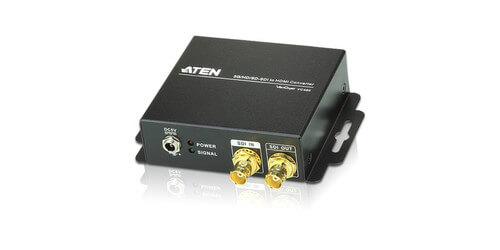

The ATEN VC480 is a quality made, 3G/HD/SD-SDI to HDMI Converter that offers a professional way to convert high definition signals in real time. It has been designed to convert 3G/HD/SD-SDI video input to HDMI video output, with a 100% SDI to HDMI digital conversion that guarantees no loss of quality for both the audio and video transmission.  This is a dependable solution when needing to convert signals with confidence when monitoring in any post production or broadcast application.

The VC480 additionally features resolutions up to 1080p@60Hz with a maximum data rate of 2.97Gbps. It offers a buffered loop through output that provides extended monitoring, automatic detection of 3G/HD/SD-SDI signals, and reclock the SDI signals for cascading for longer transmission runs.

Additional Features of the VC480 Include:

  • Supports additional analog stereo audio and coaxial digital audio
  • HDMI (Deep Color)
  • LED indication of power and signal status
  • Supports 8 audio channels @48kHz rate
  • Locking power connector for secure communications
  • Supports an SDI distance of up to 295' (3G-SDI), 492' (HDSDI) or 985' (SD-SDI) of RG6
  • Inputs: SDI
  • Outputs: SDI, HDMI
  • Supported Resolutions: Up to 1080p
  • Maximum Data Rate: 2.97Gbps
  • Maximum Pixel Clock: 148.5 Mhz
  • Maximum Distance: 3G-SDI: 295' / HD-SDI: 492' / SD-SDI: 984'
  • Supported SDI Formats: SD-SDI, HD-SDI, 3G-SDI

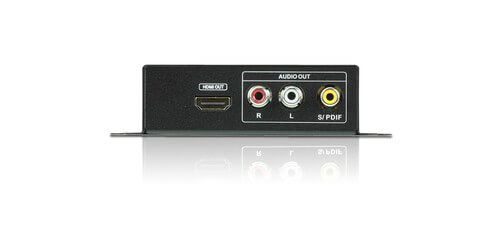

  • Audio Output: 2 x RCA red/white, analog, 1 x RCA yellow, digital
  • Power Consumption: 5V DC, 10W
  • Enclosure: Metal
  • Dimensions: 4.8 x 4.3 x 1.2"
  • Weight: 10.2oz
  • Warranty: 3 years
