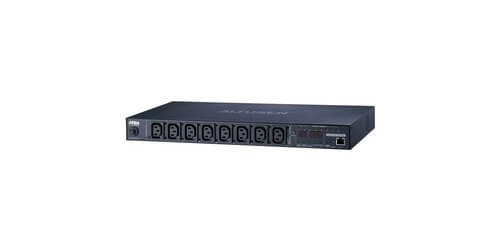

ATEN PE6108B

8-Outlet 15A/12A Power Distribution Unit (IEC)

Satisfaction Guaranteed!
Part #: PE6108B
Regular Price: $593.75
Instant Savings: -$118.75
Quantity: $475.00
0 out of 5 based on 0 ratings.

The ATEN PE6108B 8-Outlet 15A/12A Power Distribution Unit (IEC) is a intuitive eco PDU that features 8 x IEC 320 C13 IEC AC outlets. This unit was designed to give users and their connected equipment a secure, centralized, intelligent, power management (on, off, power cycle) functions. These qualities are ideal for data center IT equipment such as servers, storage systems, KVM switches, network devices, serial data devices etc.. Additionally it offers the ability to monitor the center's health environment through optionally purchased sensors.

The PE6108B PDU offers a wide range of Operation and Management controls that provide users a lot of flexibility in how they handle their connected devices power protection and abilities. Power-on sequencing technology allows users to set the power on sequence and delay time for each port to allow equipment to be turned on in the proper order. This unit will offers multi-browser support to include: Internet Explorer, Firefox, Chrome, and Safari. There is also a proactive overload protection (POP) that will automatically power off outlets when the current is overloaded to help protect operating devices from potential power spikes.

ATEN's eco PDU's give users and IT controllers remote power control combined with real-time power measurement, which works by allowing you to control and monitor the power status of devices attached to the PDU's at the PDU device level from virtually any location via TCP/IP connection. If users do purchase the optional eco Sensors, this Power Distribution Unit will support any 3rd party v3 SNMP Manager Software and the eco Sensors Energy Management Software. This optional, not included, setup allows the eco Sensors to provide you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

Additional features of the PE6108B eco Power Distribution Unit include:

  • Space-saving 1U rack mount design with rear mounting
  • 3-digit 7-segment front panel LED shows current / IP address
  • Remote users can monitor outlet status via web pages on their web browsers
  • Safe shutdown support
  • Separate power for the unit's own power and its power outlets
  • The user interface is still accessible even when an overload condition trips the device's circuit breaker
  • Power status measurement at the PDU level
  • LED indicators for current and IP address at the PDU device level


*Sensors are optional accessories. A sensor-enabled installation is required to generate a more complete energy-efficient data and chart. Higher sensor installation density is helpful to generate more accurate data*

  • Power Outlets: Direct: 8 x IEC 320 C13
  • Connectors: Inlet: 1 x IEC 320 C20, Sensor: 2 x RJ-11 LAN: 1 x RJ-45 (F)
  • I/P Rating: 100 to 120 V, 50/60 Hz, 12 A
  • Load Capacity: 2880 W
  • Nominal Input Voltage: 100 - 120 VAC
  • Max Input Current: 15A Max, 12A(UL de-rated)
  • Breakers: 1 x 15A Non-Fuse Breaker
  • Switches: Reset: 1 x Semi-recessed pushbutton / Power: 1 x Non-fuse breaker
  • Outlet Switching
  • Environment Sensor Ports: 2
  • Included Accessories: Rackmount Kit, Power Cord, Software CD
  • Warranty: 3 years
