16-Outlet 20A Energy Power Distribution Unit (IEC) - 0U Rack Size

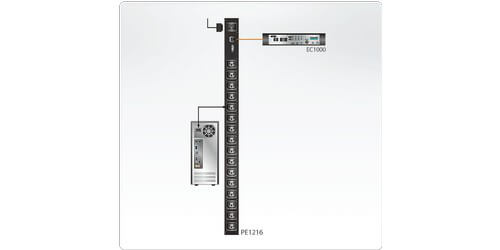

This PE1216B 16-Outlet 20A Energy Power Distribution Unit from ATEN comes in the 0U rack mount size to save on space and is available with IEC connectors. This sixteen outlet power strip can be mounted vertically on the outside of a rack, providing a sufficient amount of space for other electronic equipment and mounts on the users rack. This metal housed ATEN PE1216B is compatible with ATEN's EC1000 Energy Box (Not Included). When this power rack mount is connected to the energy box, it allows the user to monitor, in real-time, the current and environmental conditions of the 16-Outlet PDU. The energy box displays the conditions and currents either from the server room via the front panel or remotely from the Web GUI.
- Power Outlets: 16 x IEC C13
- Input Connector: 1 x IEC60320 C20
- Energy Sensor Connector: 1 x RJ-45 Female
- Nominal Input Power: 100-240V~, 50-60Hz, 20A (Max.), 16A (UL de-rated)
- Nominal Output Power: 100-240V~, 50-60Hz
- Output Current: Per Outlet: 15A (Max.), 12A (UL de-rated), Total: 20A (Max.), 16A (UL de-rated)
- Real-time PDU current monitoring*
- Weight: 2.89 lbs.
- Dimensions (LxWxH): 28.74" x 1.73" x 1.73"
- Included Accessories: Rack Mount Kit, User Instructions
- Warranty: 3 years
- *When used in conjunction with the EC1000 Energy Box (Not Included)
