Home > KVM -> KVM over IP Switches -> Cat-5 -> 1X8 -> ATEN -> KH1508AiUkit KH1508Ai KVM Switch with 8 USB Adapter Cables(KA7970)

ATEN KH1508AiUkit

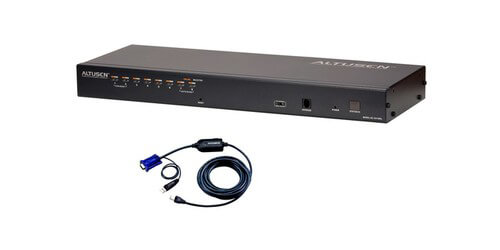

KH1508Ai KVM Switch with 8 USB Adapter Cables(KA7970)

Satisfaction Guaranteed!
Part #: KH1508AiUkit
Regular Price: $1,562.50
Instant Savings: -$312.50
Quantity: $1,250.00
0 out of 5 based on 0 ratings.

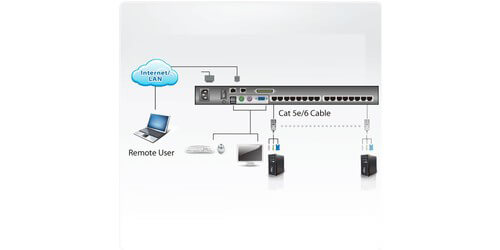

The ATEN KH1508AiUKIT is a Cat-5 High-Density 8-Port KVM over IP Switch kit with 8 USB adapter cables that has been designed to allow an 8 computer port configuration. This unit allows both local and remote operators to monitor and access the entire enterprise data center via the Internet using a web-based browser. With 8 RJ-45 connectors using Cat 5e/6 cabling to link to the computers with multiplatform support, this device can ensure high quality signals can travel up to 164' without the need of a KVM extender. By utilizing KVM Adapter Cables for the final linkup, the KH1508Ai permits any combination of PCs, Macs, Sun computers, and serial devices to coexist on the installation. Beyond TCP/IP connectivity, the KH1508Ai offers console ports for locally attached USB or PS/2 console.

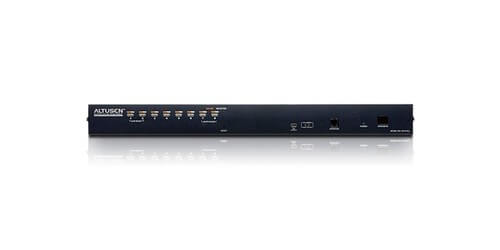

In addition the front panel of the KH1508Ai provides a Laptop USB console (LUC) port which allows access and control from the data center as well over the switch. This switch has also been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently from virtually anywhere in the world over IP connection. Further benefits of this switch include a Message Board feature which operates like an internet chat program, and allows any number of remotely logged in users to exchange information and communications with each other or to cooperatively manage the installation. There is also a Panel Array Mode that allows for the monitoring of up to 8 servers at once. Other features that contribute to the switches' powerful capabilities include: Mouse DynaSync, and Adapter ID.

By integrating KVM over IP switches in your business IT and Networking departments, IT administrators can now access and manage their server rooms and data centers from remotely from virtually anywhere. This helps businesses reduce travel costs and MTTR (Mean Time to Repair), thus ensuring the highest availability of data center services possible.

Key Features of the KH1508Ai Include:

Management:

  • Up to 64 user accounts – up to 32 users simultaneously share the control
  • End session feature – administrators can terminate running sessions
  • Event logging and Windows-based Log Server support
  • Integration with ALTUSEN CC2000 Management software
  • Power Over the NET™ integration for remote power control
  • Firmware upgradeable
  • IPv6 capable

Easy to Use Interface:

  • Multiplatform client support (Windows, Mac OS X, Linux, Sun)
  • Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
  • Browser-based UI in Web technology allows administrators to perform administrative tasks without the need for Java to be pre-installed
  • Panel Array Mode
  • Keyboard broadcast – keyboard input can be duplicated on all the attached servers

Advanced Security:

  • Remote authentication support: RADIUS, LDAP, LDAPS, and MS Active Directory
  • Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users log in from browser
  • Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES 256-bit AES, 128-bit RC4, or Random for independent KB/Mouse, and video, data encryption
  • IP/MAC Filter for enhanced security protection
  • Configurable user and group permissions for server access and control

Virtual Remote Desktop:

  • Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth setting, threshold and noise settings for compression of the data bandwidth in low bandwidth situations
  • Full screen or scalable video display
  • Message Board for communication among remote users
  • Mouse DynaSync - automatically synchronizes the local and remote mouse movements
  • On-screen keyboard with multilanguage support
  • Exit Macros support
  • BIOS-level access
  • Computer Connections: 8 Direct, 128 Max via Daisy Chain
  • Port Selection: OSD, Hotkey, Pushbutton

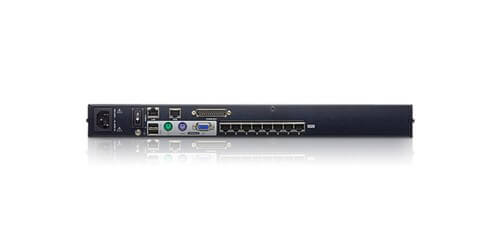

  • Console Connector Ports: 2 x USB Type A, 2 x 6-pin Mini-DIN (1 Purple, 1 Green), VGA
  • KVM Port Connectors: 8 x RJ-45 Female
  • Video Resolution: Local: 1600 x 1200 @ 60 Hz (131'), 1280 x 1024 @ 75 Hz (164 m with KA7xx Adapter Cable) / Remote: 1600 x 1200 @ 60Hz
  • Daisy Chain Ports: DB-25 Male
  • Power Port: IEC 60320/C14
  • LAN Ports: RJ-45
  • Firmware Upgrade Port: RJ-11
  • PON Port: RJ-45
  • Laptop USB Console Port (LUC): USB Mini Type B
  • Scan Interval: 1 255 secs
  • Maximum Input Power Rating: 100-240V AC, 50/60 Hz, 1A
  • Power Consumption: 120V/12.5W, 230V/12.7W
  • Dimensions (LxWxH): 17.21 x 6.13 x 1.73"
  • Weight: 6.08lbs
  • Included Accessories: 8x KA7970 USB Cables, 1x Power Cord, 1x Firmware Upgrade Cable, 1x Rack Mount Kit, 1x Foot Pad(4pcs), 1x User Manual, 1x Quick Start Guide
  • Warranty: 3 Years
