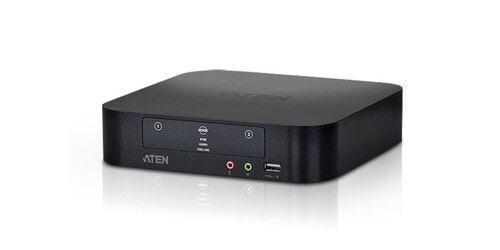

2-Port USB Mini DisplayPort/Audio Dual Display KVMP Switch
The ATEN CS1942 2-Port USB Mini DisplayPort/Audio Dual Display KVMP Switch allows the user to access up to two computers from a single USB keyboard and mouse with two displays. This device combines the functionality of a dual view, 2-port DisplayPort switch with a 2-port USB 2.0 hub, along with a front panel USB charging port for mobile devices. This unit is designed with the latest Mini-TOSLINK and MIni-DisplayPort connectors as well as SPDIF connection. Additionally, it provides digital video & audio with reliable high resolution (up to 2560 x 1600), along with vivid picture quality and digital surround sound.
This switcher also features Nvidia 3D Vision, Mini DisplayPort 1.1a and is HDCP compatible. This unit also has power on detection, meaning this device senses when a connected computer powers down and automatically switches to the next powered-on computer. To control this device, the user has the option to make selections by way of the front panel pushbuttons, mouse, or hotkeys for flexible access from any connected computer. With all these great features and technologies, the CS1942 KVMP Switch from ATEN is the perfect addition to a variety of AV setups while offering space-saving, streamlined KVM technology.
- Computer Connections: 2

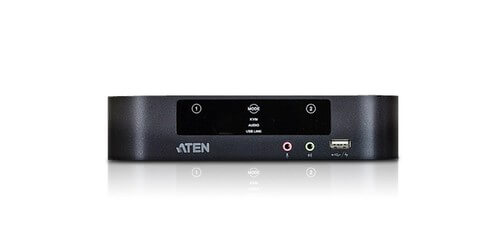

- Port Selection: Touch Panel, Hotkey, Mouse
- Console Ports: 2 x USB Type A, 2 x Mini DisplayPort, 2 x Mini TOSLINK Jack, 2 x 3.5mm Audio Jack

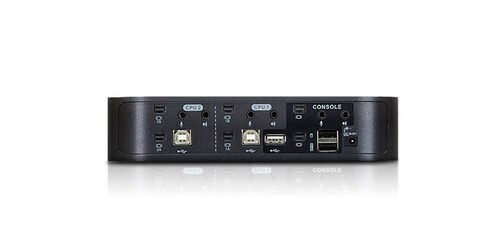

- KVM Ports: 2 x USB Type B, 4 x Mini DisplayPort, 4 x Mini TOSLINK Jack
- USB Hub: 2 x USB Type A
- Power: 1 x DC Jack
- Emulation: Keyboard / Mouse (USB)
- Video: DP 2560 x 1600 @ 60Hz, or 3D 1920 x 1080 @ 120Hz
- Scan Interval: 1 - 99 seconds (Default: 5 seconds)
- Power Consumption: DC 5.3V, 6.68W
- Housing: Plastic
- Weight: 1.23 lb.
- Dimensions (L x W x H): 7.76 x 7.76 x 1.76"
- Included Accessories: 2x Mini DisplayPort 1.1a 3.2' Cable, 2x Mini DisplayPort 1.1a 6.5' Cable, 2x USB 2.0 5.9' Cable, 2x Audio Jack 5.9' Cable Sets, Power Adapter, User Instructions
- Warranty: 3 years
