2-Port USB 3.0 DispalyPort KVMP Switch, 3840 x 2160

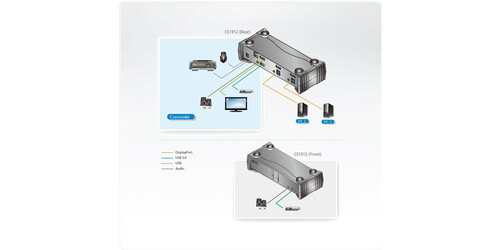

The ATEN CS1912 2-Port USB 3.0 DispalyPort KVMP Switch allows the user to access two DisplayPort computers from a single monitor, USB keyboard, and USB mouse. This device supports video resolutions up to 3840 x 2160 @ 30 Hz as well as USB 3.1 Gen 1 hub with SuperSpeed transfer rates of 5 Gbps. With independent switching, this KVM unit can focus on one computer while the USB peripheral focus is on another computer, eliminating the need to purchase a separate peripheral sharer (e.g. splitter, printer server, modem) or stand-alone USB hub.
Dual-mode DisplayPort technology (DP++) allows this switcher to support HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter**(not included). This unit also has power on detection, meaning this device senses when a connected computer powers down and automatically switches to the next powered-on computer. To control this device, the user has the option to make selections by way of the front panel pushbuttons, hotkeys, or mouse*. The CS1912 KVMP Switch from ATEN is ideal for use in video post production, as well as CAD design and applications that have a high demand for large data transfer rates with precise video clarity.
Additional features of this device include:
- Full bass response for high-quality 2.1 channel surround sound systems
- Hot pluggable – add or remove computers without powering down the switch
- Auto Scan Mode for monitoring all computers
Notes from the Manufacturer:
*Mouse port switching is only supported under mouse emulation mode with a USB 3-button mouse wheel.
** Dual-Mode DisplayPort technology (DP++) does not require an active adapter for most single display setups. Active DisplayPort adapters are recommended if you are unsure of the video source's DP++ compatibility.
- Computer Connections: 2
- Port Selection: Hotkey, Pushbutton, Mouse

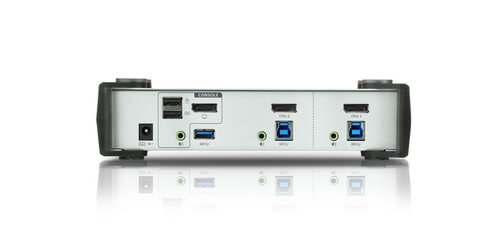

- Console Ports: 2 x USB Type A, 1 x DisplayPort, 2 x 3.5mm Audio Jack
- KVM (Computer) Ports: 2 x USB3.1 Gen1 Type B, 2 x DisplayPort, 2 x 3.5mm Audio Jack
- Power: 1 x DC Jack
- USB Hub: 2 x USB 3.1 Gen1 Type A (Blue)
- Video: 3840 x 2160 @ 30Hz
- Emulation: Keyboard / Mouse (USB)
- Scan Interval: 1-99 Seconds (Default: 5 sec.)
- Power Consumption: DC 5.0V, 12.88W
- Housing: Metal, Plastic
- Weight: 1.61 lb.
- Dimensions (L x W x H): 8.27 x 3.46 x 2.19"
- Included Accessories: 2 x DisplayPort Cables, 2 x USB 3.0 Cables, 2 x Audio Cables, Power Adapter, User Instructions
- Warranty: 3 years
