ATEN CS17916

16-Port HDMI/Audio KVM Switch, 1080p

Satisfaction Guaranteed!
Part #: CS17916
Regular Price: $1,562.50
Instant Savings: -$312.50
Quantity: $1,250.00
0 out of 5 based on 0 ratings.

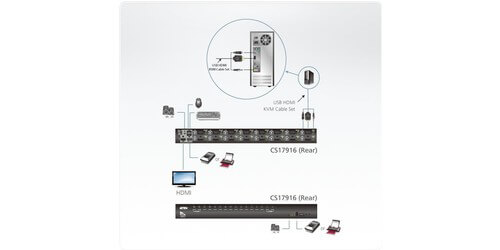

Featuring the CS17916 16-Port HDMI/Audio KVM Switch from ATEN. This Switcher allows the user to access and control up to 16 separate computers from a single monitor, USB keyboard, and USB mouse. It has the ability to cascade up to two levels, providing control over up to 256 computers. With multi-display function, this unit enables the user to stack up to eight switches using standard USB cables in a multi-display installation where each computer is fitted with multiple video cards. This switcher is also built with Video DynaSync, exclusive ATEN technology, that optimizes resolution when switching between ports and eliminates boot-up display problems.

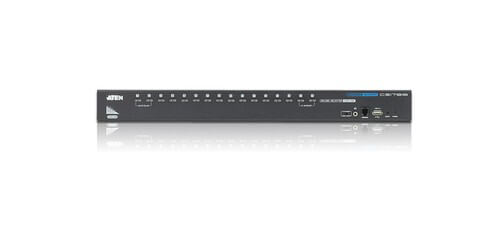

To control this device, the user has the option to make selections by way of the front panel pushbuttons, mouse, or hotkeys for flexible access from any connected computer. The OSD (on-screen display) provides access to any connected computer, and the switch also offers OSD configuration backup/restore to save the OSD settings and restore them if needed. It is audio enabled and supports mulimedia keyboards, with the option to listen to the audio of each computer on two different sets of speakers, one-at-a-time. This ATEN CS17916  switch allows the user to monitor, contrast, and analyze video output in a convenient way, while substantially simplifying the working environment.

Additional Features of this Switch Include:

  • Audio enabled–full bass response provides a rich experience for 2.1 channel surround sound systems
  • Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
  • Complete keyboard emulation for error-free booting
  • Cascadable to two levels–control up to 256 computers
  • Auto Scan Mode for monitoring all computers
  • Multiplatform support–Windows, Linux, Mac, Sun
  • HDMI and HDCP compatible
  • Firmware upgradable
  • Computer Connections: 16
  • Port Selection: OSD, Hotkey, Pushbutton
  • Console Ports: 2 x USB Type A, 1 x HDMI, 2 x Mini Stereo Jack

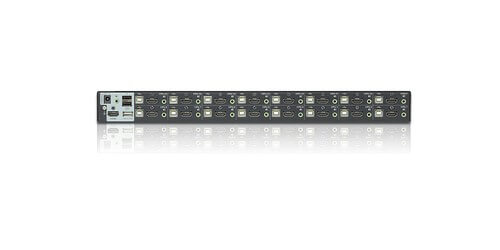

  • KVM Ports: 16 x USB Type B, 16 x HDMI, 16 x Mini Stereo Jack
  • Firmware Upgrade: 1 x RJ11
  • Power: 1 x DC Jack
  • USB Hub: 2 x USB Type A
  • Emulation: Keyboard / Mouse (USB)
  • Video: 1080p / 1920 x 1200 (DVI)
  • Scan Interval: 1 - 255 Seconds (Default: 5 secs)
  • Power Consumption: DC 5.0V, 12.2W
  • Housing: Metal
  • Weight: 8.5 lbs.
  • Dimensions (L x W x H): 17.02 x 10.13 x 1.73"
  • Included Accessories: 2x Custom USB HDMI KVM Cable Sets 5.9', Firmware Upgrade Cable, Power Cord, Power Adapter, Foot Pad Set (4 pcs), Mount Kit, User Instructions
  • Warranty: 3 years
