Home > KVM -> KVM Switches -> PS/2 - USB -> 1X8 -> ATEN -> CS1758 8-Port USB/PS2 Combo KVM with Audio Support


8-Port USB/PS2 Combo KVM with Audio Support

Satisfaction Guaranteed!
Part #: CS1758
Your Price: $350.00
0 out of 5 based on 0 ratings.

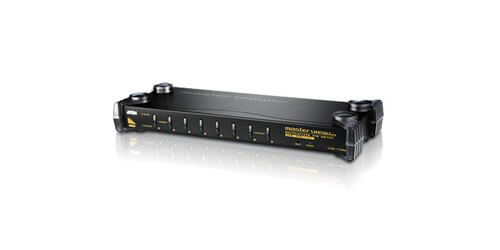

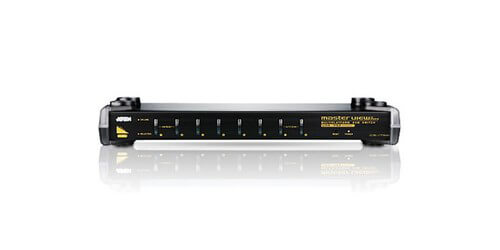

The ATEN CS1758 is a quality-made 8-Port PS/2-USB VGA KVM Switch with Audio Support. This 4-Port switch has been designed to support computers with PS/2 or USB interfaces via cables and audio signal function. With a VGA connection for the consoles video the switch can handle resolutions up to 2048 x 1536. It will allow one user the ability to directly control up to 4 computers. The switch also has the ability to support a 3-tier connection via cascading, that allows 73 sets of the CS1754 to be daisy-chained together, giving users the ability to control up to 512 computers. For added flexibility ATEN designed this unit to provide multi-platform support and will work with Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.

  • Computer Connections: Direct 8 / Maximum 512 (via Cascade)
  • Port Selection: Hotkey, Pushbutton, OSD

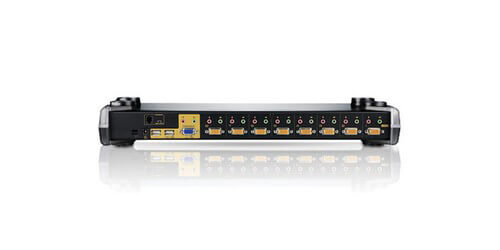

  • Console Port Connectors: 2x USB Type A, VGA, 2x Mini Stereo Jacks
  • KVM Connector Ports: 8x SPHD-15, 16x Mini-Stereo Jacks
  • Emulation: Keyboard / Mouse: USB
  • Switches: Ports, Firmware Upgrade, Reset
  • LED Indicators: Online, Selected, Power
  • Video Resolutions: 2048 x 1536, DDC2B
  • Scan Interval: 1-255 Seconds
  • Dual interface supports with computers with PS/2 or USB keyboards and mice. Multi-platform Support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun
  • Auto PS/2 and USB interface detection
  • Buzzer On/Off via hotkey and OSD
  • Computer selection via front panel pushbuttons, hotkeys and OSD
  • Power Consumption: DC 5V, 2.75W
  • Dimensions (LxWxH): 17.21 x 6.34 x 1.73"
  • Weight: 5.99 lbs
  • Included Accessories: Firmware Upgrade Cable, Power Adapter, Rack Mount Kit, User Manual, Quick Start Guide
  • Warranty: 3 Years
