4-port Dual Video Dual Link DVI KVMP Switch, Audio Support, Cables

Satisfaction Guaranteed!
Part #: CS1644A
Your Price: $645.00
0 out of 5 based on 0 ratings.

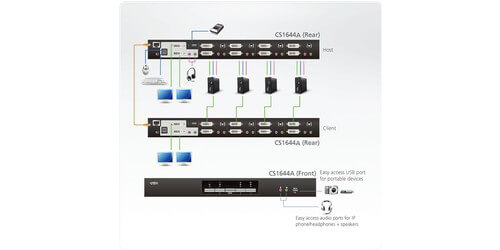

The ATEN CS1644A is a quality made 4-Port USB DVI Dual Link Dual Display with Audio KVMP Switch. This device provides a multi-application approach device that integrates a 4-port KVM switch with a 2-Port USB hub, with support for quad-view functionality when using two Dual View KVM switches chained together. Multi-view capabilities allow two switch to be daisy chained together to allow for a dual, triple, or quadview display across multi-monitor installations. In addition this device supports advanced nVidia 3D Vision ready 120Hz 3D displaying, that allows users to manage various 3D visual effects. This will allow users to manipulate all connected computers from a single console to help save resources and work space. It also enables each computer to access connected peripherals on a one-computer-at-a-time basis, making this ideal for users who need delicate visual effects and multi-tasking on several computers. One dual-screen USB console can control two/four dual-screen computers and two additional USB devices. Making the CS1644A a perfect device for graphic designers, banking and financial consultants, gamer's and medical professionals that have a demand for high quality switching that offers stunning color, clarity and functionality.

The CS1644A will support 2560 x 1600 at 60Hz (DVI Dual link); and 3D displays up to 1920 x 1200 at 120Hz (DVI Single link). Provides independent switching of KVM, USB, and Audio focus. There is DVI digital and analog monitor support that is fully compliant with DVI specifications, with support for widescreen resolutions, and HDCP encryption compliant. Video DynaSync is also built into this KVMP switch which is an exclusive ATEN technology that assists in eliminating boot-up display problems, while optimizing resolutions when switching between ports. This switch is also multi-platform supported and will work with Windows 2000/XP/Vista, Linux, Mac, Sun, and FreeBSD, as well as providing Sun/Mac keyboard support and emulation.

  • Computer Connections: 4
  • Console Ports: 2 USB Type A, 2 DVI-I, 2 mini stereo jacks
  • KVM Ports: 2 USB Type B, 4 DVI-I, 4 mini stereo jacks
  • Daisy Chain Ports: RJ-45 (rear panel)
  • Video Resolutions: DVI Dual Link: 2560 x 1600 at 60Hz, 1920 x 1200 at 120Hz (3D Display)
  • Port Selection: Hotkey, Pushbutton, Mouse
  • Emulation: Keyboard / Mouse: USB
  • Scan Interval: 1-99 secs. (5 secs. default)
  • Power Consumption: DC 5.3 V, 10.6 W
  • USB Hub: 2 x USB Type A Female (Black
  • 1 x front panel
  • 1 x rear panel)
  • Switch Selection: 3 x pushbutton
  • Supports widescreen resolutions
  • Independent switching of KVM, USB, and Audio focus
  • DVI digital and analog monitor support: fully compliant with DVI specifications, and HDCP compliant
  • Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Sun, and FreeBSD
  • Sun/Mac keyboard support and emulation
  • Dimensions (LxWxH): 10.33 x 3.02 x 1.73 in
  • Weight: 1.23lbs
  • Included Accessories: 8x Custom DVI-D Dual Link Cable Sets, 1x Power Adapter, 1x User Instructions Warranty: 3 Years
