2-Port USB DVI Secure KVM Switch (NIAP Common Criteria Compliant)

Satisfaction Guaranteed!
Part #: CS1182
Your Price: $575.00
0 out of 5 based on 0 ratings.

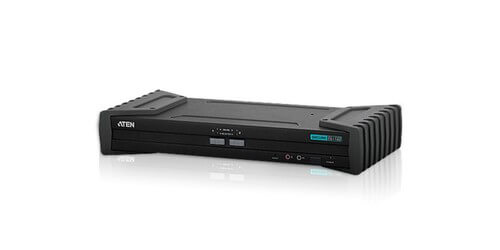

The CS1182 from ATEN is a 2-Port USB DVI Dual Link Secure KVM Switch with DVI dual link resolutions up to 2560 x 1600. This 2-Port switch offers users and IT professionals secure and reliable access to any government/military desktop environment where essential security measures are imperative by providing safe switching  between computers that are operating on different secure networks. Additionally this unit is NIAP-certified according to common criteria's EAL2+ certification, the CS1182 provides 2-port models for secure desktop workstation use.

Furthermore ATEN has designed this KVM switch with added hardware security adding extra layers of security to this unit. These include a tamper-evident tape, chassis intrusion detection, and tamper-proof hardware. Software security includes restricted USB connectivity - non HID's (Human Interface Devices) are ignored when switching - an isolated channel per port that makes it impossible for data to be transferred between secure and unsecure computers. There is even a automatic keyboard buffer where keyboard data is automatically cleared after transmission to the switch, thus keeping keystrokes and passwords safe and untraceable. A Non-reprogrammable prevents tampering and attempts to reprogram the swtich's firmware. Port selection is achieved via pushbutton only (OSD, hotkey methods are not allowed) to further enhance security.

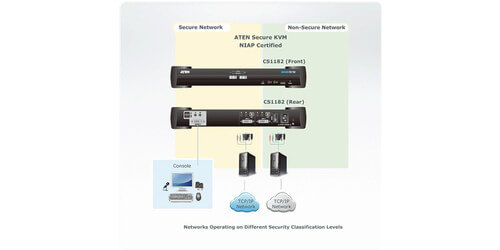

Through the combination of actual physical security by means of controlled USB connectivity, in addition to software safe guards, the CS1182 gives users the means to consolidate multiple workstations of various security classification levels with one keyboard, monitor, and mouse (KVM) console.

  • Maximum Computer Connections: 2

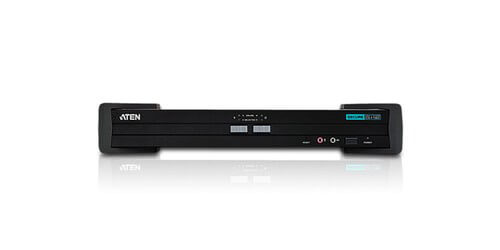

  • Port Selection: Pushbutton only (no OSD or Hotkey Methods)
  • Console Ports: 2 x USB Type-A Female, DVI-I Dual Link Female, 2 x Mini Stereo Jack Female, 2 x Mini Stereo Jack Female

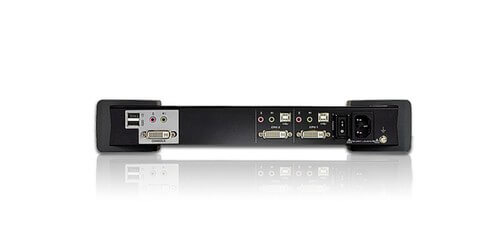

  • KVM Ports: 2 x USB Type-B Female, 2 x DVI-I Dual Link Female, 2 x Mini Stereo Jack Female (Green), 2 x Mini Stereo Jack Female (Pink)
  • Emulation: Keyboard / Mouse via USB
  • Video Resolutions: Dual Link up to 2560x1600, Single Link up to 1920x1200
  • Maximum Input Power Rating: 100 240V AC, 50/60 Hz, 0.5A
  • Switches: 2 Pushbuttons for port selection, 1 semi-recessed pushbutton for reset, 1 rocker for power
  • Power Consumption: 120V / 5.1W
  • 230V / 5.1W
  • Weight: 4.54lbs
  • Dimensions (LxWxH): 13.74 x 6.65 x 2.4"
  • Included Accessories: Power Cord, User Manual, Quick Start Guide
  • Warranty: 3 Years
