ATEN CL6708MW

Single Rail, 8-Port, 17" Full HD, DVI LCD KVM Switch

Satisfaction Guaranteed!
Part #: CL6708MW
Regular Price: $2,250.00
Instant Savings: -$450.00
Quantity: $1,800.00
0 out of 5 based on 0 ratings.

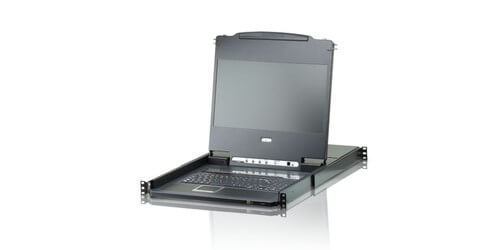

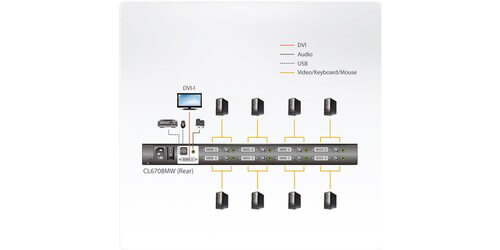

Featuring the ATEN CL6708MW 17" Full HD DVI LCD KVM Switch. This amazing 8-Port, Single Rail, LCD KVM Switch adds amazing versatility to ATEN's already abundant line of KVM Console Switches. With native DVI compatibility, and a space-saving design which integrates an LCD panel, full keyboard, and touchpad into a streamlined, 1U housing, this LCD KVM Switch is an amazing device to implement into your current KVM system. The CL6708MW is highly-scalable and offers users the ability to control up to 64 computers by cascading 8 additional CS1768 (not included) 8-Port KVM Switches to the unit. The DVI monitor is fully compliant with DVI specifications, and can produce pristine 1920 x 1080 video resolutions.

Featuring an integrated 17.3" LED-backlit LCD panel capable of full HD 1080p video – greater clarity than typical analog interfaces – the CL6708MW incorporates the YUV video format for greater compatibility with high-definition signals (e.g. NVR sources). Similarly, the CL6708MW is High-Bandwidth Digital Content Protection (HDCP) compatible, making it well-suited for use with content-protected media in corporate, educational, and commercial settings. To further enhance usability, ATEN’s LED illumination light is included to ensure keyboard and touchpad visibility in low-light conditions.

  • Computer Connections: 8 Direct, 64 Maximum (via Cascading)
  • Port Selection: OSD, Hotkey, Pushbutton
  • External Console Ports: DVI-I, 2x USB Type A, Mini Stereo Jack
  • External Mouse Port: USB Type A

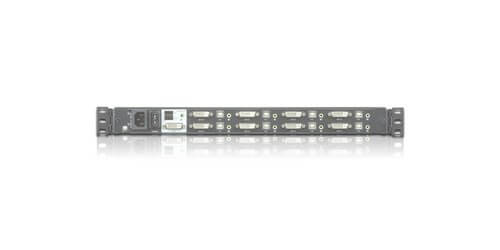

  • KVM Ports: 8x DVI-I, 8x USB, 8x Mini Stereo Jack
  • Switches: Reset, Power, Firmware, LCD Adjust, LCD On/Off, Port Selection
  • Emulation: Keyboard / Mouse: USB
  • Video Resolution: 1920 x 1080 @ 60 Hz, DDC2B
  • Scan Interval: 1 255 sec
  • Maximum Input Power Rating 100-240V AC, 50/60 Hz, 1 A
  • Power Consumption: 110V, 29.26W | 220V, 28.82W
  • LED Indicators: Online, Power, Selected, Lock
  • LCD Module: 17.3" TFT-LCD
  • Pixel Pitch: 0.1989 mm x 0.1989 mm
  • Support Color: 262144 colors
  • Contrast Ratio: 650:1
  • Luminance: 300 cd/m squared
  • Response time: 8 ms
  • Viewing Angle 140 degrees (H), 120 degrees (V)
  • Adjustable depth to fit within the rack
  • Audio support for connecting speakers
  • Auto Scan Mode for monitoring all computers
  • Broadcast mode: allows you to send commands from the console to all computers to perform operations simultaneously
  • Firmware upgradable
  • Multiplatform support: Windows, Linux, Mac, Sun
  • Dimensions (LxWxH): 18.9 x 27.13 x 1.73"
  • Weight: 27.97lbs Included Accessories: 2x Custom USB DVI KVM Cable Set, Power Cord, Firmware Upgrade Cable, User Instructions, Standard Rack Mount Kit
  • Warranty: 3 Years
