ATEN CL6700MW

USB DVI 17" Wide Screen HD LCD KVM Console, Supports HDMI & VGA

Satisfaction Guaranteed!
Part #: CL6700MW
Regular Price: $1,812.50
Instant Savings: -$362.50
Quantity: $1,450.00
0 out of 5 based on 0 ratings.

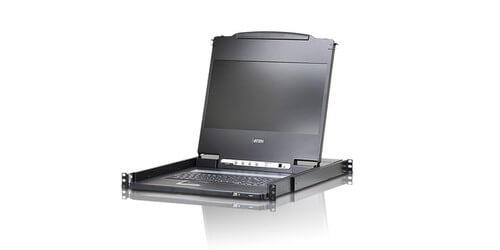

Featuring the ATEN CL6700MW DVI Full HD LCD Console. This single rail KVM console features a 17.3" LED-backlit high-definition widescreen with an integrated keyboard and touchpad that all fits in a 1U rack-mountable sliding housing. This console provides front end access to compatible KVM switches while utilizing a space saving module that can close flat and slide into a rack housing. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-definition monitor to the console port, and/or an HDMI compatible switch to the KVM port.

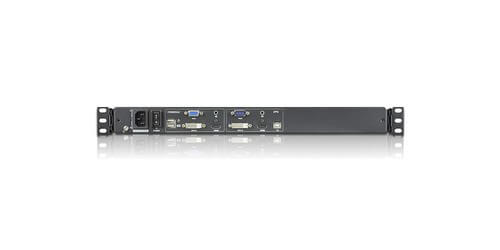

The CL6700MW additionally features a port for an external USB mouse on the front panel of the unit, with ports for the second KVM console (keyboard, mouse, and DVI, HDMI, or VGA monitor), are provided on the back panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers. This unit provides amazing video quality up to 1920 x 1080 @60Hz, as well as DDC, DDC2, and DDC2B. In addition it provides multi-platform support to work with Windows, Linux, Mac, and Sun platforms.

  • Panel LCD Module: 17.3" TFT-LCD
  • Support Colors: 262144 colors
  • Contrast Ratio: 650:1
  • Luminance: 300 cd/m squared Response time: 8 ms
  • Viewing Angle: 140 degrees (H), 120 degrees (V)
  • Computer Connections: 1
  • External Console Ports: 2 USB Type A, DVI-D, VGA, HDMI, Mini Stereo Jack
  • KVM Ports: USB Type B, DVI-D, VGA, HDMI, Mini Stereo Jackl External Mouse / Peripheral Port: USB Type A
  • Firmware Upgrade Port: RJ-11
  • Power: 3 Prong AC Socket
  • Emulation: Keyboard / Mouse: USB
  • Video Resolution: 1920 x 1080 @60Hz, DDC2B
  • Audio support for connecting speakers
  • Standard 105-key keyboard
  • Sun keyboard emulation
  • Multi-platform support: Windows, Linux, Mac, and Sun
  • Firmware Upgradeable
  • Standard rack mount kit included: optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
  • Supports an external console with USB / DVI / VGA / HDMI connectors
  • Max. Input Power Rating: 100-240V AC, 50-60Hz, 1A
  • Power Consumption: 120V/19.4W, 230V/19.4W
  • Dimensions (LxWxH): 18.9 x 23.2 x 1.73
  • Weight: 25.07lbs
  • Included Accessories: Custom USB DVI KVM Cable Set, Power Cord, Firmware Upgrade Cable, User Instructions
  • Warranty: 3 Years
