16-Port Dual Rail 19" LCD Combo KVM - TAA Compliant

Satisfaction Guaranteed!
Part #: CL5816N
Your Price: $1,850.00
0 out of 5 based on 0 ratings.

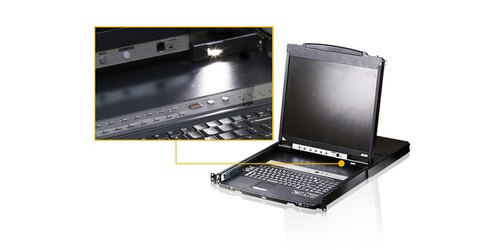

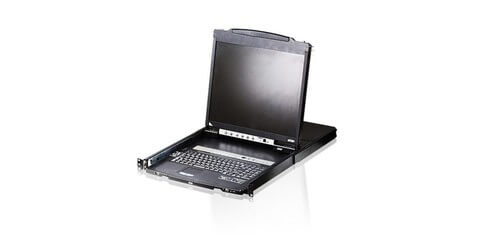

The ATEN CL5816N is a Dual Rail 16-Port LCD Console KVM Switch Combo System. This LCD KVM Switch is a 2x16 control unit that allows access to up to 8 computers from two PS/2 or USB KVM consoles. The CL5816N features a 19" LED-backlit LCD monitor and keyboard/touch pad that conveniently folds down and slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back, flush against the rack. This unit gives users the ability to quickly switch computer access with station and port selection pushbutton switches located on the keyboard module. Additionally even when the keyboard module is in the retracted position users can still switch access with the Port Up/Port Down pushbuttons located on the monitor module.

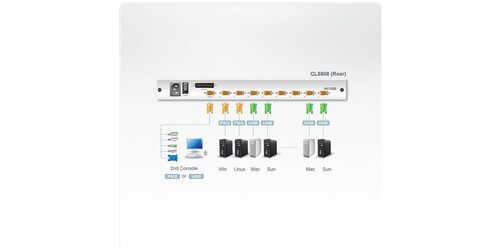

The CL5816N supports both PS/2 and USB keyboards and mice for the connected computers, as well as support for USB peripheral devices to be used with the attached computers. A single CL5816N can control up to 16 computers. As many as 31 additional compatible KVM switches can be daisy chained together, so that up to 512 computers can all be controlled from a single keyboard, monitor, and mouse console giving users greater system flexibility and control. With multi-platform support this unit can handle Windows, Linux, Mac, and Sun, and offers auto PS/2 and USB interface detection.

  • Computer Connections: 16 Direct, 512 via Daisy Chaining
  • Port Selection: OSD, Hotkeys, Pushbuttons
  • CPU Connectors (Keyboard/Video/Monitor): 16 x SPHD 15/17 Female
  • Secondary Console: 1 x SPHD 18 Male
  • Extra Mouse Connector: USB Type A Female
  • USB Peripheral Connector: USB Type A Female
  • Daisy Chain: DB-25 Connector
  • Multi-platform support: Windows, Linux, Mac, and Sun
  • Supports multimedia USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • Switches: 16x Pushbutton (Port Selection), 4x Pushbutton (LCD Adjustment), 1x Pushbutton (Power), 1x Rocker Switch (Power), 1x Semi-recessed Pushbutton (Reset)
  • LED Indicators: 8 Online, 8 Selected, 2x 7-segment LED Display, 1x Power on
  • Emulation: Keyboard/Mouse: USB, PS/2
  • Video Performance (Local): 19" LCD - 1280x1024@75 Hz, DDC2B
  • Video Performance (Remote): 1920x1440 (From Secondary Console)
  • Scan Interval: 1-255 seconds
  • Power Consumption: 120V, 30.1W,103 BTU, 230V, 30.7W, 105 BTU
  • Housing: Metal / Plastic
  • Dimensions: 18.9 x 26.8 x 1.7"
  • Weight: 31lbs
  • Included Accessories: 2x Custom KVM Cables (2L5302UP), 1x 5-in-1 Console Cable, 1x Firmware Upgrade Cable, 1x Power Cord 6', 1x Grounding Wire 4', 1x User Manual, 1x Quick Start Guide
  • Warranty: 3 Years
