Home > KVM -> LCD KVM Switches -> SPHD -> 1X8 -> ATEN -> CL1308NUKIT 8-Port 19" LCD Console, USB/PS2 KVM Switch, 8 USB KVM Cables


8-Port 19" LCD Console, USB/PS2 KVM Switch, 8 USB KVM Cables

Satisfaction Guaranteed!
Part #: CL1308NUKIT
Your Price: $1,500.00
0 out of 5 based on 0 ratings.

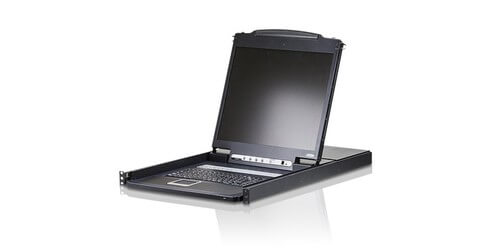

The Aten CL1308NUKIT is a quality made 8-port, 19" LCD, USB & PS/2 KVM Console Switch with 8 USB KVM Cables. This KVM console switch features an integrated 19" LED-backlit LCD panel that allows IT professionals, or network admins, control and access with up to 8 computers from a single KVM console. With the option to daisy chain as many as 8 additional switches bringing the total number of connected computers up to 128, that can be controlled from a single keyboard-monitor-mouse console. Superior video quality of up to 1280 x 1024 @ 75 Hz resolutions are supported. Making this a perfect addition for network and IT rooms that may have limited space that will provide a streamlined approach to KVM switching technology by integrating an LCD panel, full keyboard, and touchpad into a 1U rack mountable sliding housing.

Setup for this LCD Console Switch is super simple and fast; simply plug the cables into their appropriate ports, and your off and running. The switch offers dual interface support for both USB and PS/2 connections for the computer side, and the CL1308NUKIT intercepts the keyboard input directly, thus eliminating the need for any software configuration. There is a Auto PS/2 and USB interface detection, as well as an Auto Scan feature for monitoring user-selected computers. Furthermore switching can be achieved between computers either manually by pressing the front panel push buttons port LED's, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. For security there is a two-level password security-only authorized user's view and control computers. Up to four users and an admin with a separate profile for each. Finally Broadcast mode operations can be simultaneously performed on all selected computers.

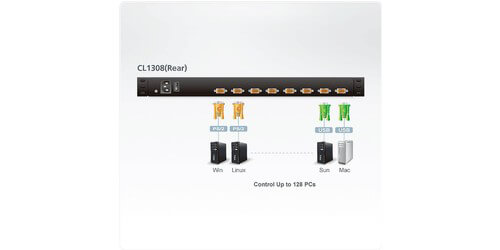

  • Computer Connections: Direct: 8 / Maximum:128 (via Cascade)

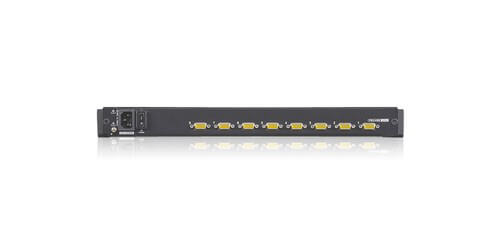

  • KVM Connector Ports: 8 x SPHD-17 Female
  • Emulation: Keyboard / Mouse: PS/2, USB
  • Video: 19" LCD, 1280x1024 @ 75Hz, DDC2B
  • Port Selection: OSD, Hotkeys, Pushbuttons
  • Scan Interval: 1-255 seconds
  • Dual Interface: supports computers with PS/2 or USB keyboards and mice
  • Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, and Sun
  • Supports USB keyboards for PC, Mac and Sun
  • Auto PS/2 and USB interface detection
  • Auto Scan feature for monitoring user-selected computers
  • Broadcast mode: operations simultaneously performed on all selected computers
  • Input Power Rating: 100-240 VAC, 50/60 Hz, 1A
  • Power Consumption: 19" LCD: 120V, 22W
  • Switches: Reset: semi-recessed pushbutton, Power: 1x Rocker, FW Upgrade: 1x Slide, LCD Control: 4 x Pushbutton, LCD On/off: 1x pushbutton, Port: 8x pushbutton
  • Dimensions (LxWxH): 19.01 x 27.13 x 1.73" Weight: 27.75lbs
  • Package Contents:1x CL1308 LCD KVM Switch with Rack Mount Kit, 8x Custom KVM USB Cables, 1x Firmware Upgrade Cable, 1x Power Cord, 1x User Instructions
  • Warranty: 2 Years
