USB VGA Over IP KVM Extenderr Kit w/ Audio and Serial Support

Discontinued Product
This product has been discontinued.
For further information and alternative products, please call us at 888-999-3759 or click here to contact us.
0 out of 5 based on 0 ratings.

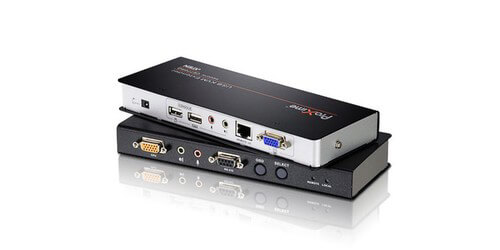

The ATEN CE790 is an IP-based USB VGA KVM Extender Kit, that features automatic cable detection and RS-232 serial functionality. This system was designed to allow access to a computer system from a remote USB console (USB keyboard, VGA monitors, and USB mouse), from anywhere on the intranet through a Switch Hub. The receiver and transmitter in this kit include a very intuitive On Screen Display (OSD) for easy setup and operation. They operate over a standard TCP/IP LAN via Cat5e cabling, allowing for point-to-point, point-to-multipoint, and multipoint-to-multipoint administration without the need for an additional KVM switch. An RS-232 port has been provided as well on both devices which allows the units to connect to a serial terminal for configuration, and serial devices such as touchscreens and barcode scanners.

Additional Features of the CE790 Include:

  • Dual console operation - control your system from both the transmitter and receiver USB consoles
  • OSD (On Screen Display) on both the transmitter and receiver units
  • Supports GUI operation
  • No software required - an HTTP server is embedded in both units
  • Built-in ASIC for greater reliability and compatibility
  • USB Keyboard and USB Mouse Ports
  • Audio enabled
  • USB overcurrent detection and prevention
  • High resolution video - up to 1920 x 1080
  • Supports widescreen formats
  • Ultra-High quality video mode
  • Hot pluggable
  • Rack mountable

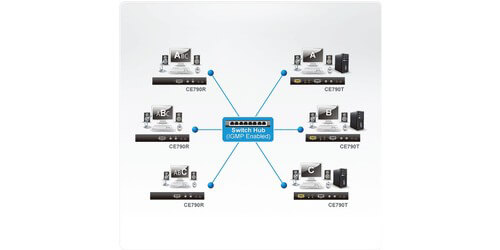

Manufacturers Note: In multipoint configurations, the IGMP (Internet Group Management Protocol) function of your network switches/hubs should be enabled to avoid deterioration of data throughput.

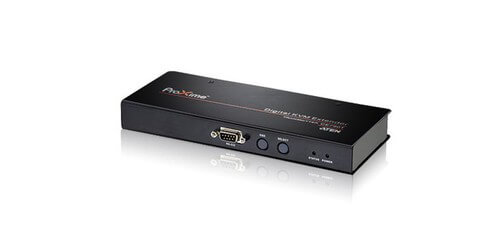

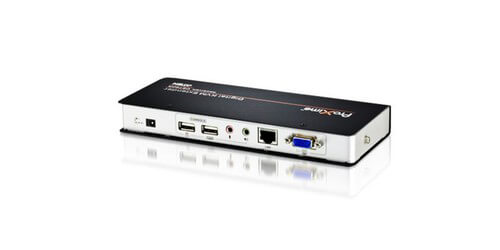

  • This Kit comes with both the CE790R and CE790T (Transmitter and Receiver) Unit
  • Receiver Console Ports: 2x USB Type A, VGA, 2x Mini Stereo Jack
  • Transmitter Console Ports: 2x USB Type A, VGA, 2x Mini Stereo Jack
  • Transmitter KVM Ports: SPHD-17, 2x Mini Stereo Jack
  • RS-232 Serial Connectivity: Receiver: DB-9 Male / Transmitter: DB-9 Female
  • Unit to Unit Connectivity: RJ-45
  • Video Resolution: Up to 1920 x 1080
  • Emulation: Keyboard / Mouse: USB
  • Power Consumption: Receiver: DC 5.3V, 6.36W / Transmitter: DC 5.3V, 6.62W
  • Dimensions (LxWxH): 7.95 x 3.4 x 0.98" for each device
  • Weight: 1.08lbs each device
  • Included Accessories: 1x USB KVM Cable (CE790T), 2x Power Adapters, 2x Rack Mount Kits, 2x Grounding Wires, 1x User Manual, 1x Quick Start Guide
  • Warranty: 3 Years
