Home > KVM -> KVM Extenders -> Cat-5 Receiver and Transmitter Kits -> VGA -> ATEN -> CE252 Cat5 PS2 Console Extender with Local Switch Built-in up to 500'

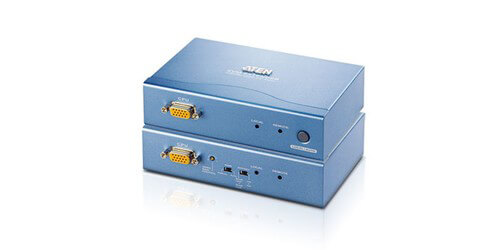

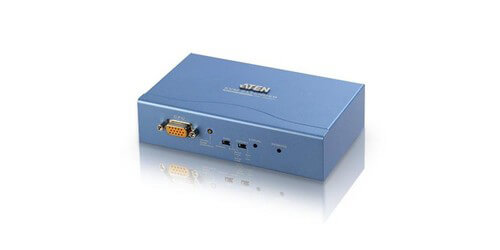

ATEN CE252

Cat5 PS2 Console Extender with Local Switch Built-in up to 500'

Satisfaction Guaranteed!
Part #: CE252
Regular Price: $556.25
Instant Savings: -$111.25
Quantity: $445.00
0 out of 5 based on 0 ratings.

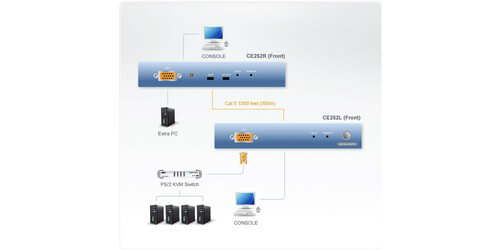

The CE252 from ATEN is a quality made PS/2 - VGA Cat5 KVM Extender Kit that has been designed to extend a KVM console up to 984' in distance over Cat5. This gives users the ability to control and access multiple computers remotely from greater distances and keep your main equipment safe and secure in a server or network room. Both the local and remote units in the kit support PS/2 consoles with VGA monitors. In addition the CE252 includes a convenient port at the remote unit to connect an extra computer. This allows the remote user to combine their desktop computer with the remote console for increased efficiency and productivity.

To allow for greater flexibility, the CE252 offers adjustable and automatic gain control. Users can either manually adjust signal strength to compensate for distance, or allow the equipment to automatically adjust signal strength to compensate for greater distances. With a high video resolution of up to 1600 x 1200 users will benefit from very solid video quality in both their local and remote console monitors. With that, these units can support VGA, SVGA, and multi-sync monitors as well as DDC2B support for local monitor (display data channel for communication between graphic card and monitor).

  • This Kit Includes Both the CE252L and CE252R Local and Remote Units
  • Local Unit Console Ports: VGA, 2x 6-pin Mini-DIN (1 Keyboard, 1 Mouse)
  • Local Unit KVM Ports: SPHD-15 Female (Yellow)
  • Remote Unit Console Ports: VGA, 2x 6-pin Mini-DIN (1 Keyboard, 1 Mouse)
  • Remote Unit KVM Ports: SPHD-15 Female (Yellow)
  • Emulation: PS/2 for Keyboard and Mouse
  • Video: 1600 x 1200 @ 60Hz at 492', 1024 x 768 @ 60Hz at 984'
  • Switch Selection Mode: Pushbutton
  • Manual and Automatic Gain Control
  • Power Consumption: Local: DC 5.3V, 2.6W / Remote: DC 5.3V, 2.6W
  • Supports DDC2B for local monitor (display data channel for communication between graphic card and monitor)
  • Supports VGA, SVGA, and Multisync Monitors
  • Built-in 8KV ESD protection and 2KV surge protection
  • Local Unit Draws Power from the Computer
  • Multiplatform support: Windows 2000/XP/Vista
  • Dual Console Operation: control your system from both the local and remote PS/2 keyboard, mouse and monitor consoles
  • Additional PC connection allowed for the remote unit
  • Pushbutton selection - sequential selection between local and auto mode
  • Dimensions (each) LxWxH: 5.47 x 3.46 x 1.42" Weight (each): 0.81lb
  • Included Accessories: 2x KVM Cable, 1x Rack Mounting Kit, 1x Power Adapters, 2x Grounding Wires, 1x Quick Start Guide, 1x User Manual
  • Warranty: 3 Years
