High Power PoE Injector, Up to 328'

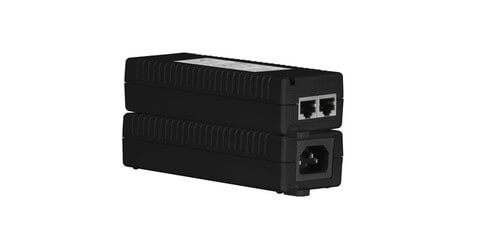

The AMX PS-POE-AT-TC is a high power Power over Ethernet (POE) injector, it transmits both power and data through a single cable to a remotely located Power-over-Ethernet (PoE) device. This self-contained single-port PoE gigabit power supply "injects" DC power and data into the same twisted pair cable at a distance of up to 328'.
The device is compatible with the following touch panels; MVP-9000i, MXT-1000, MXD-1000, MXT-700, MXD-700 and MXD-430. It is also compatible with DXLink transmitters and receivers such as the DX-TX, DX-TX-DWP, and DX-TX-WP.
- PoE injector
- Dimensions: 5 1/2" x 2 1/8" x 1 1/4"
- Weight: .44 lbs
- Load diagnostic LED
- Cord and Connectors: Dual shielded RJ45 jacks built into the enclosure
- Approvals: IEEE 802.3at (PoE), RoHS / WEEE compliant
- UL/cUL per IEC 60950-1
- Warranty: 3 years
