Kramer AV TBUS-5xl-KIT1
HDMI, VGA, Audio, Power, Data Table Box w/ Retracting Lid

Description

The Kramer TBUS-5xl-KIT1 is a configured table box with a manually retractable lid. The lid lifts up then slides down and out of the way, the lid also has a small opening in it so cables can be plugged in with the lid closed.

Included is 1 power with 6' cord, 1 HDMI, 1 VGA, 1 audio, and 1 Ethernet.  All connections are female to female for ease of installing cables up to the backside of the connections.

Choose between black anodized aluminum and (silver) clear anodized aluminum.

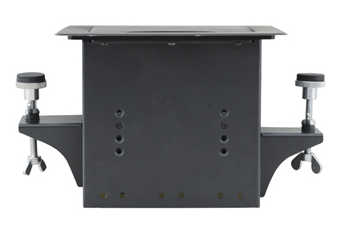

To install just cut your hole, drop it in, and secure with the included clamps to the underside of your table.

Applications include: boardrooms, conference rooms, classrooms and lecterns.

In order to ensure a short lead time, minor assembly is required on most TBUS items.

Not seeing the connections you want? We can help! To request a quote for a different configuration please call us at 888-999-3759, click here to email us, or via Live Chat.

Specifications

• Table cutout: 6.23" x 4.85"
• Anodized aluminum top with tilting lid
• The connections can be installed higher or lower in the box if you need cable storage
• Works in tables up to 3" thick
• Mounting hardware included
• Warranty: 7 years
• UL and CE Qualified

Downloads

• Kramer AV TBUS-5xl-KIT1 Specifications (PDF)
• Kramer TBUS-5xl(B)-KIT1 Manual (PDF)
• Kramer TBUS-5xl(B)-KIT1 Cutout Template (PDF)
