Intelix DIGI-P123
Multi-Format 12x3 Presentation Switcher and 1080P Scaler

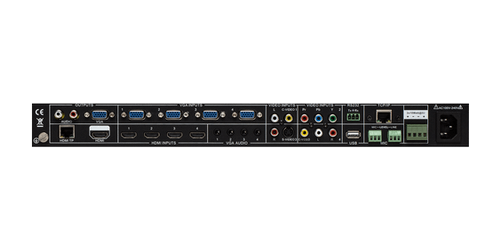

- Inputs: 4 HDMI (HDCP compliant), 4 VGA, 1 S-Video, 2 composite, and 1 component
- Outputs: Simultaneous HDMI, HDBaseT, and VGA outputs, except for encrypted content
- HDBaseT distance: Up to 229'
- Output scaling up to 1080P
-Lynn Y.
Description

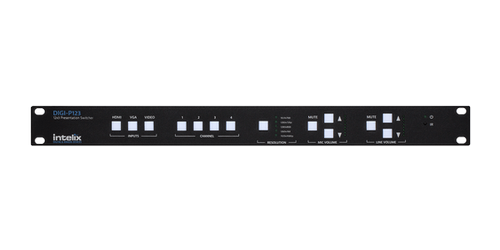

The Intelix DIGI-P123 is a 12 input and 3 output multi-format switcher and 1080P scaler. There are 4 HDMI (HDCP compliant), 4 VGA, 1 S-Video, 2 composite, and 1 component video input, there are 1 HDMI, 1 VGA, and 1 HDBaseT output that mirror each other. The output can be scaled to your choice of 5 different resolutions ranging from XGA to 1080P, as well as many different aspect ratios to choose from.
The audio is embedded on the HDMI out but there is also audio de-embedding integrated into the switcher/scaler. There is a line level out so you can connect into your rooms amplification system if needed, as well as an integrated 2x10W 8-Ohm amplifier. There is also a balanced line level microphone input which is mixed with the source audio to provide voice lift capabilities, the volumes of the microphone and source can be individually controlled.
Control is easy with the web browser interface as well as RS-232, front panel, and IR with the included remote control. The Intelix DIGI-P123 covers all your analog, digital, switching, scaling, and audio needs in one affordable unit. The unit also adds the ability to send out to a display up to 229' away with the HDBaseT output.
Specifications
- Integrated 2x10W 8 Ohm amplifier
- Line level out audio
- Microphone input

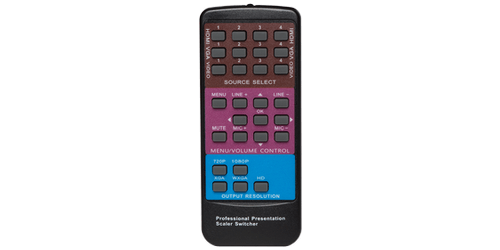

- Control: Web browser interface, RS-232, front panel, and IR with the included remote control
- On-screen menuing
- Warranty: 2 years
- Dimensions: 19 in x 9.25 in x 1.73 in (1RU)
- Weight: 8.25lbs
- Includes: IR Remote, Power Cable, Four (4) Rubber Feet, Serial Cable
