Avenview HBT-C6POE-SET
HDMI 4K CAT5/6/7 TX/RX Set, PoE, RS-232, Bi-Direct IR, 328'

Description

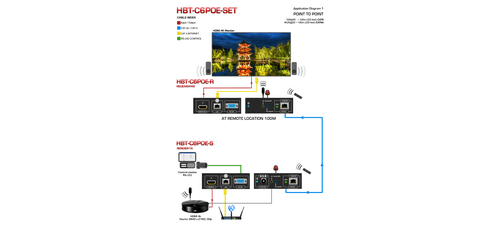

Avenview's HBT-C6POE-SET is a HDMI 4K30 resolution supported, CAT5/6/7 HDBaseT Extender Kit that comes with both a transmitter and receiver unit, and can send high-definition video and multi-channel audio formats to any HD monitor up to 328' away. This kit comes with the HBT-C6POE-S transmitter and the HBT-C6POE-R receiver unit and also allows for the extension of bi-directional IR and RS-232 control signals and LAN. Using PoE pass-through, the transmitter also has the ability to power the receiver at the display end thus eliminating the need for a separate power supply for the receiver. Making this an ideal range system for digital signage solutions, conference rooms, medium sized conference rooms, and teaching environment type applications.

This range extender kit will support Full HD 1080p up to 3D, UHD (3840 x 2160) and 4K30 (4096 x 2160) video resolutions. It equally allows for LPCM 7.1 channel, Dolby TrueHD, and DTS-HD Master Audio pass-through, accepts DVI input (separately sold DVI to HDMI adapter required) and is HDCP and CEC compliant. When connected to a router this system can achieve up to 100Mbps of Ethernet transmission service, uses 3D support: Follow by Display / TV's EDID and can support PC resolutions up to VGA to WUXGA. These added features for the HBT-C6POE-SET unit give the installer and end users a complete solution to keep pace with the latest trends in online streaming, network connected devices, and the new demand in Smart TV, Ultra HD monitors and content. The Avenview HBT-C6POE-SET comes backed by a 3 year warranty and comes with a Power Adapter for the transmitter.

Specifications

• Ethernet Speed: 100Mbps
• HD Resolutions: Up to 4K30 (3840 x 2160)
• PC Resolutions: VGA up to WUXGA
• Bandwidth: 9Gbps
• HDCP Compliant
• CEC Compliant: Allows CEC bypass
• Range: 4K2K (3840 x 2160 @ 30 Hz): 229' over CAT6e & Full HD (1080p): 330' over CAT6e/6a
• Supported Audio: LPCM 7.1 channel, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
• HDMI Cable Length: Input: 49.2',1080p @ 8-bit or 19.6', 1080p @ 12-bit / Output: 49.2', 1080p @ 8-bit or 32.8', 1080p @ 12-bit
• ESD Protection
• Power Supply: 24V DC, 1.25A
• Power Consumption: 13W
• RoHS, CE, FCC, UL Approved

• Receiver Specifications HBT-C6POE-R
• Inputs: CAT5e/6/7, 3.5mm IR Extender
• Outputs: 3.5mm IR Blaster, RS-232, LAN, HDMI
• Ethernet Speed: 100Mbps
• HD Resolutions: Up to 4K30 (3840 x 2160)
• PC Resolutions: VGA up to WUXGA
• Bandwidth: 9Gbps
• HDCP Compliant
• CEC Compliant: Allows CEC bypass
• Range: 4K2K (3840 x 2160 @ 30 Hz): 229' over CAT6e & Full HD (1080p): 330' over CAT6e/6a
• Supported Audio: LPCM 7.1 channel, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio
• HDMI Cable Length: Input: 49.2',1080p @ 8-bit or 19.6', 1080p @ 12-bit / Output: 49.2', 1080p @ 8-bit or 32.8', 1080p @ 12-bit
• ESD Protection
• Power Supply: PoE (powered from transmitter)
• Power Consumption: 13W

• Package Contents: HBT-C6POE-S Transmitter Unit, HBT-C6POE-R HDBaseT PoE Cat5/6/7 Receiver, Power Adapter (24 VDC /1.25A), IR Extender, IR Blaster
• Warranty: 3 Year Limited Warranty

Downloads

• Avenview HBT-C6POE-SET Specifications (PDF)
• Avenview HBT-C6POE-SET Manual (PDF)
