WyreStorm SP-0102-H2
1:2 4K HDMI Splitter with HDCP 2.2 and Auto-EDID Management

Description

Wyrestorm's SP-0102-H2 is a dual-output splitter that enables a single HDMI source to be distributed across two displays. This device is small but mighty, and its compact design enables ease-of-installation in a bevy of digital environments.

Other key features of the SP-0102-H2 include:

• Supports 4K@60Hz 8bit 4:2:0 | 4:4:4 and HDR@24Hz 10bit BT.2020
• Supports UXVGA resolutions up to 1920x1200
• HDCP 2.2 compliant
• HDMI 2.0 supported
• DTS-X and Dolby Atmos supported
• Plug-and-play set up for easy installation
• Automatically negotiates EDID signals from display on output 1 for seamless communication between devices

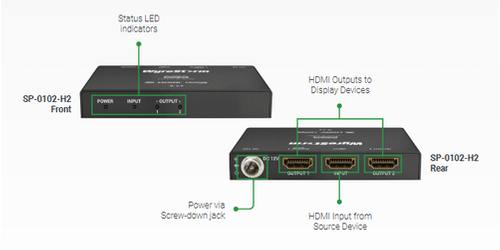

• LED indication illustrating power, HDMI input, and HDMI output status
• Each port supports both HDMI and DVI signals

Specifications

• Max. Video Resolution: 1920x1080p @60Hz 12bit (49.2ft) | 16bit (49.2ft) / 3840x2160p @30Hz 4:4:4 8bit (49.2ft) | @24Hz 4:2:0 HDR 10bit (49.2ft) / 4096x2160p @60Hz 8bit 4:2:0 (49.2ft) | @60Hz 8bit 4:4:4 (9.8ft)
• Color Depth: 1080p: 48bit | 4K UHD: 24bit | HDR @24p: 10bit BT.2020
• Maximum Pixel Clock: HDMI: 600mHz
• Communication and Control
• HDMI: HDMI | HDCP 2.2 | Configurable EDID | DVI/D supported with adapter (not included)
• Power
• Power Supply Input: 100~240V AC 50/60Hz | Output: 12V DC 0.5A
• Max Power Consumption: 3.7W
• Dimensions & Weight
• Rack Units/Wall Box: 0.34U
• Height: 0.6in
• Width: 3.94in
• Depth: 2.77in
• Weight: 0.44lbs
• Warranty: 5 years

Downloads

• WyreStorm SP-0102-H2 Specifications (PDF)
