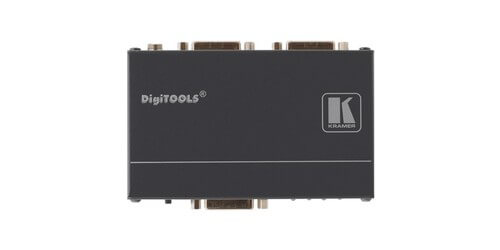

Kramer AV VM-2HDCPxl
1:2 DVI Distribution Amplifier - HDCP Compliant
- Max. Data Rate: 6.75Gbps (2.25Gbps per graphic channel)
- Max. Resolution: Up to WUXGA & 1080p

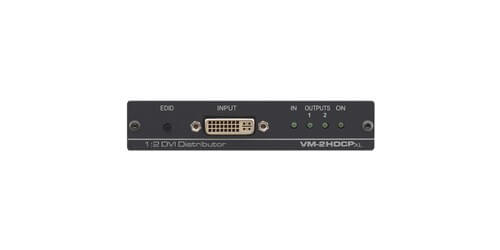

- Input: 1 DVI on a DVI Molex 24-pin female connector

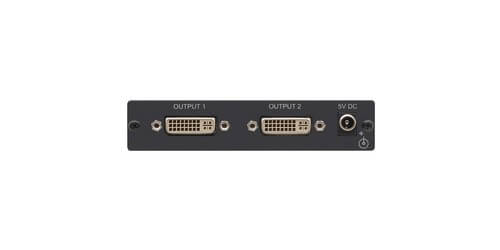

- Outputs: 2 DVI on DVI Molex 24-pin female connectors
Description
The VM-2HDCPxl from Kramer is a distribution amplifier with 1 input and 2 outputs for DVI-D signals with resolutions up to and including WUXGA and 1080p. This device is great for use in multiple screen applications where you have the need for sending DVI signals from a computer graphics source to a display or projector on the receiving end. It is also HDCP compliant for data copy protection. The DVI distribution amplifier works by reclocking and equalizing the DVI signal and then distributing it to two identical outputs. This high-end device features a fast maximum data rate of 6.75Gbps, a resolution up to WUXGA and 1080p, is HDTV compatible and uses active input and output LED indicators. Other features include Kramer's equalization & "re-Klocking" technology which rebuilds the digital signal to travel longer distances, and its intelligent EDID processing ability, which uses a handling and processing algorithm that ensures plug and play operation for DVI systems.
The VM-2HDCPxl distribution amplifier comes with a 7 year warranty from Kramer and has a compact design allowing for 3 units to be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.
Specifications
- HDTV Compatible
- HDCP Compliant
- Supports DVI 1.1
- Controls: EDID button for selecting/storing EDID information
- Power Consumption: 5V DC
- Included Accessories: Power Supply & Mounting Bracket
- Warranty: 7 Years
