Kramer AV PIP-4
4 Composite Video Picture-in-Picture Inserter

Description

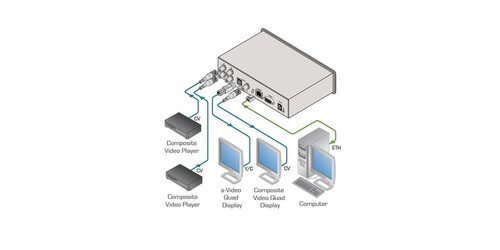

The Kramer PIP-4 is a high-quality picture-in-picture inserter for composite video signals. The PIP-4 was designed to display up to four images simultaneously, each of which can be sized and positioned individually. The picture-in-picture options allow all inputs to be display simultaneously with variable window sizing and positioning and freeze frame capability with Quad button that displays 4 equal sized images. This device features both Multi-format operation for s-Video and composite video outputs, and Multi-standard operation for PAL & NTSC compatible inputs & outputs (no format conversion). Also featured is a USB mouse connector for convenient navigation and control, including the OSD, and a built-in ProcAmp for brightness, contrast, and saturation control of for each input. The PIP-4 comes with easy to use and flexible control options that can be achieved via the front panel buttons, IR remote, mouse (with OSD), or through RS-232 & Ethernet. Making this picture-in-picture inserter and ideal product for use in video production studios for source monitoring, teleconferencing using one screen, home theater multi-channel monitoring, and security type applications.

Specifications

• Built In ProcAmp
• Multi Standard: PAL & NTS
• No Format Conversion
• USB Mouse Connector For convenient navigation and control, including the OSD
• K-Factor: 0.9%
• S/N Ratio: 64dB
• Chroma / Luma Delay: <15ns
• Y/C Separation: Adaptive 4-line digital comb filters
• Memory: Non-volatile memory for storage of 2 setups
• Control: Front panel, OSD, RS 232 and Ethernet, video pane size and position
• Video ProcAmp functions: video zoom, freeze
• Power Consumption: 5V DC, 560mA
• Included Accessories: Power supply, RC IR3 Infrared Remote Control, rack "ears"
• Dimensions: 8.45" x 6.42" x 1.72" (W, D, H)
• Weight: 2.0 lbs
• Warranty: 7 Years

Downloads

• Kramer AV PIP-4 Specifications (PDF)
• Kramer AV PIP-4 Manual (PDF)
