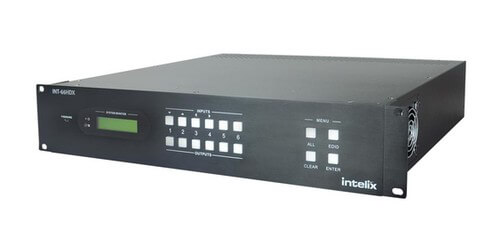

Intelix INT-66HDX-KIT
6x6 HDBaseT Matrix w/ 6 HDBaseT Receivers, 4K, HDCP 2.2, PoH
- Kit includes: (1) INT-66HDX and (6) INT-HDX100-RX
- Six HDMI inputs with HDCP 2.2 support
- Kit includes 6 HDBaseT receivers model INT-HDX100-RX
- Six HDBaseT with PoH, with three mirrored HDMI, outputs
Description
The Intelix INT-66HDX-KIT is a six input by six output HDBaseT/HDMI matrix switcher with HDCP 2.2 and UHD/30 video support. The matrix features advanced EDID and HDCP handling, including the ability to turn input HDCP compliance ON and OFF to ensure maximum functionality with a wide range of sources.
The INT-66HDX-KIT features HDBaseT twisted pair extension for each output, and simultaneous HDMI on the first 3 outputs, allowing the same signal to be routed to the HDMI connector and a remote destination with an HDBaseT receiver. The HDBaseT ports support up to UHD/30 HDMI video with audio, bidirectional wide-band IR, matrix control via IR, RS232 tunneling, and HDCP (1.4 and 2.2) up to 100 meters (328 feet). Each HDBaseT output port supplies power to the attached extender, eliminating the need for a power supply at the display end. Each output features analog stereo audio de-embedding and coaxial multichannel audio de-embedding for connection to amplifiers or DSPs.
The INT-66HDX-KIT can be controlled via front panel buttons, front panel IR, external IR, remote IR through HDBaseT extenders, RS232, and Ethernet. The matrix includes a simple IR remote control to allow IR switching. This IR remote control can be learned into universal remotes and IR based control systems. An IR All In port is provided, which allow one IR connection to control all four remote displays.
The matrix also features a full command set for RS232 and Ethernet control with third party control systems, plus control via a web browser. RS232 commands to remote displays can either be tunneled directly to the displays or be embedded in the control stream through the matrix from both the RS232 and Ethernet control ports, which will reduce the number of serial ports required for the control system.
This Kit Includes: (1) INT-66HDX and (6) INT-HDX100-RX| Six HDMI inputs with HDCP 2.2 support Kit includes 6 HDBaseT receivers model INT-HDX100-RX|
Specifications
- 100 m (328 ft) maximum extender distance
- Analog and digital audio de-embedding on each output
- Front panel, IR, TCP/IP, and RS232 control
- IR and RS232 routing
- IR and RS232 tunneling over HDBaseT
- Control page and configuration accessible from web browser (Web GUI)
- Advanced HDCP management
- Warranty: 2 Years
