Comprehensive CSW-HD440NEXT
4x4 HDMI Matrix Switcher w/ 4 Receivers over Cat5e/6, EDID

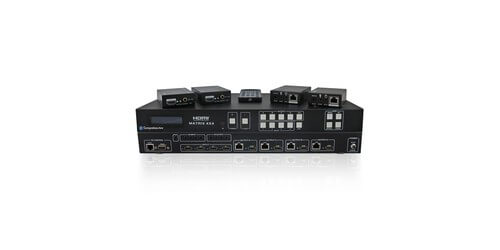

- This Kit Includes a Matrix Switcher and Four HDMI Receivers
- Input Ports: 4x HDMI, 4x IR Extender, 1x RS-232, 1 x RJ-45(Control), 1 x Matrix IR Extender
- Output Ports: 4x CAT, 4x IR Extender, 4x HDMI
- Output Resolution: Up to 1080p
-Jeff A.
Description

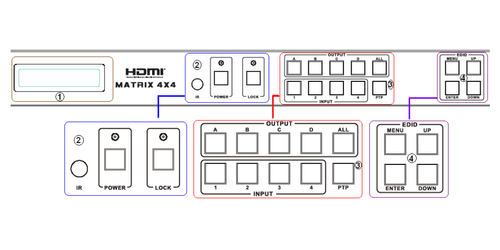

Introducing the Comprehensive CSW-HD440NEXT 4x4 HDMI 1080p Matrix Switcher with smart EDID management, as well as 4 Receivers over Cat5e/6. This device features four HDMI outputs and each of the outputs are mirrored to provide a simultaneously run Cat-cable output. To control the different devices and sources, the user can utilize the RS-232 control, the IR remote, front-panel buttons, or TCP/IP control.

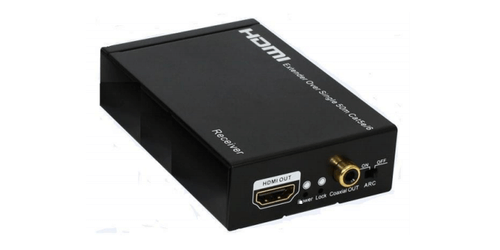

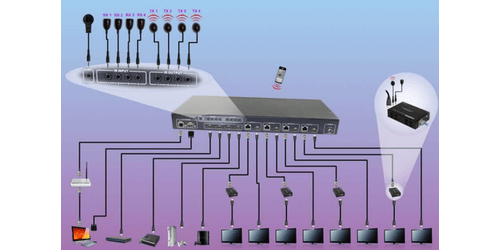

By connecting a included receiver to each of the Cat-cable outputs, the user can extend the HDMI signal up to 164' for multi-room connectivity. These units are compatible with DVD and Blu-ray Players, game consoles, set-top boxes, and home theater PCs that are capable of connecting to an HDMI display. At all times, any of the sources are accessible by any of the displays and by using the above mentioned controls, the user can control and select inputs and outputs.
Other Features of this Matrix Switcher Kit Include:
- Audio supports 7.1CH of LPCM, Dolby TrueHD, and DTS-HD Master Audio

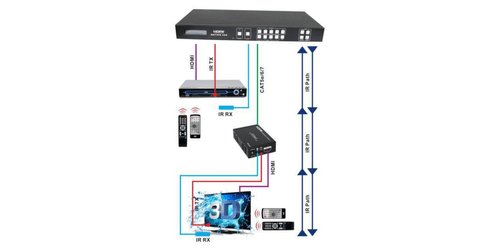

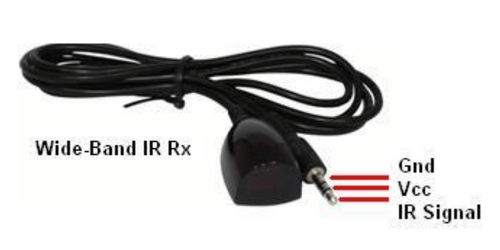

- Supports wideband IR(20-60Khz) matrix system, IR transport channel can be forward or backward
- Power Supply Compatibility: US/EU standards, CE/FCC/UL certified
- 3D signal compatibility
Specifications
- Power Supply: 12 V/2.5 A DC
- ESD Protection: 8kV (air-gap discharge) 4kV (contact discharge)
- Chassis Material: Metal
- Rackmountable: Yes
- Silkscreen Color: Black
- Power Consumption: 23 W(max)/0.5W(Standby)
- Weight: 4 lbs.
- Dimensions (WxDxH): 17.4 x 7.8 x 1.8"
- Included Items: 4x4 HDMI Matrix, 4x HDMI Receiver, 2x Power Adapter, Operation Manual, 4x IR Tx Cable, 5x IR Rx Cable, Matrix IR Remote, 2x Mounting Ears, RS-232 Cable
- Warranty: 2 Years
