Comprehensive CDA-HD12018G
1x2 HDMI Distribution Amplifier, Full UHD 4K60 4:4:4, 18Gb
- Inputs: 1x HDMI
- Outputs: 2x HDMI
- Video Resolutions: up to 4K60 (4:4:4), 4K30,1080P, and 1080P 3D
- Video Bandwidth: 18 Gbps
Description

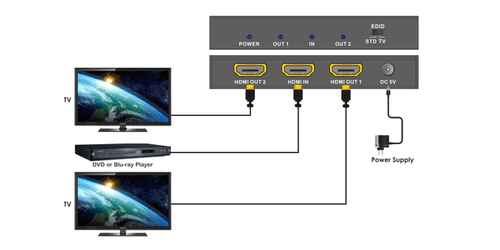

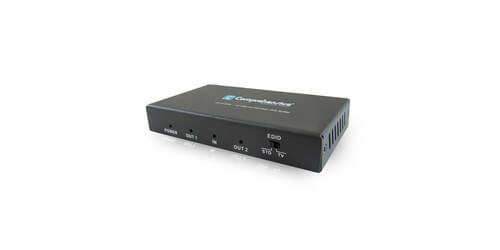

Introducing Comprehensive's CDA-HD12018G 1x2 HDMI Distribution Amplifier supporting Full UHD 4K60 4:4:4 with bandwidth speeds up to 18Gbps. This device allows the user to connect one HDMI input and distribute it to two HDMI outputs simultaneously. It supports HDCP 2.2, 3D, 12-bit Deep Color, and High Definition Lossless Audio. Also included is Smart EDID control that provides users with the choice between STD (fixed) or TV (downstream) settings. Another feature of this splitter is its slim chassis design with a durable, metal enclosure. This CDA-HD12018G Distribution Amplifier from Comprehensive is an ideal solution for settings such as classrooms, conference rooms, huddle spaces, retail and showroom displays, as well as lecture halls. This splitter comes backed by a two year warranty from Comprehensive.
Specifications
- HDCP Compliance: HDCP 1.4 / HDCP 2.2
- HDMI Compliance: HDMI 2.0a / HDMI 1.4b
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth: 10-bit, 12-bit
- Audio Formats: PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- ESD Protection: 8kV (air-gap discharge) & 4kV (contact discharge)
- Power Supply: 5V/1A DC
- Power Consumption: (Max) 5W
- Housing: Metal
- Weight: 0.22 lbs.
- Dimensions (WxDxH): 2.2 x 3.7 x 0.7"
- Included Accessories: Power Adapter, Operation Manual
- Warranty: 2 Years
