Atlona AT-UHD-CAT-4
1x4 4K HDBaseT Distribution Amplifier - HDCP 2.2

Description

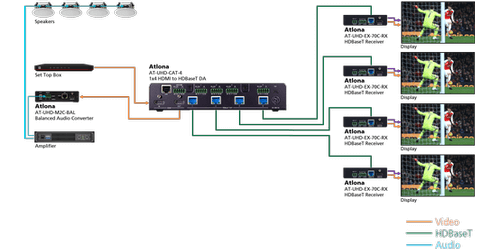

The Atlona AT-UHD-CAT-4 is a 1 HDMI input and 4 HDBaseT output 4K distribution amplifier, it will take your single source and send it out to up to 4 displays up to 230' away (130' for 4K).  It also sends power to the receivers so they do not require a power supply simplifying installation.  The distribution amplifier supports resolutions up to 4K60 4:2:0 with HDCP 2.2 compliance.  The unit can be controlled via the front control buttons, CEC, IR, or RS-232.

The Atlona AT-UHD-CAT-4 is compatible with the sold separately AT-UHD-EX-70C-RX receivers.  The unit is a perfect solution when you need to send your signals a long distance with the highest resolution.

Specifications

• Additional HDMI output to daisy chain multiple units together
• Max resolution: 4K/UHD60 4:2:0
• HDCP 2.2
• Color Depth: 8-bit, 10-bit, 12-bit
• Bandwidth: 10.2Gbps AMS ready
• Control: Front control buttons, CEC, IR, or RS-232
• Includes: International power supply, under table brackets, rack ears
• Dimensions: 1.73" x 8.75" x 10.28"
• Weight: 3.7lbs
• Warranty: 10 years

Downloads

• Atlona AT-UHD-CAT-4 Specifications (PDF)
