Atlona 4K-HDVS-WP-EXT
4K UHD HDBaseT TX/RX Kit: 2-Input Wall Plate Switcher, PoE
- End of Life - Limited Supply
-Gregory W.
Description

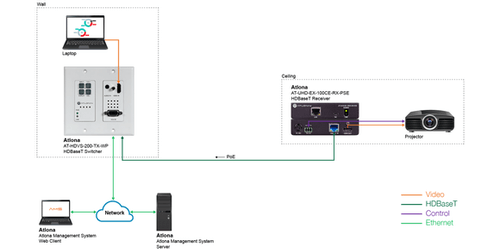

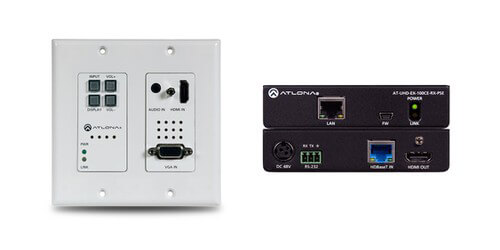

The 4K-HDVS-WP-EXT from Atlona is a HDBaseT Transmitter and Receiver Kit, with a 2-Input Wall Plate Switcher for HDMI and VGA sources. This kit comes with the AT-HDVS-200-TX-WP two-input HDBaseT wall plate switcher and AT-UHD-EX-100CE-RX-PSE HDBaseT receiver. This kit features a 2-gang decora style wall plate, a 2x1 HDBaseT switcher with HDMI and VGA inputs, and is capable of handling up to 4K/UHD @60Hz 4:2:0 resolutions. It is HDCP 1.4 compliant, and acts as a HDBaseT extension for AV, control, and Ethernet up to 330'. There is also automatic display control using IP, RS-232, or CEC, as well as automatic input selection using hot plug detect and video detection technology. The transmitter in this kit is powered by the receiver via Power over Ethernet (PoE). The 4K-HDVS-WP-EXT Transmitter/Receiver kit comes backed by a 10 year warranty from Atlona.
Click Here to see product details on the AT-HDVS-200-TX-WP
Click Here to see product details on the AT-UHD-EX-100CE-RX-PSE
Specifications
- Specs For AT-HDVS-200-TX-WP
- Video connections: HDMI, VGA, audio
- Control buttons: Display, input, volume
- HDBaseT distance: 328'
- HDCP 1.4 Max resolution: 4K60 with 4:2:0 chroma subsampling
- Receives its power from the sold separately AT-HDVS-200-RX receiver
- Bandwidth: 10.2Gbps
- Color Depth: 8-bit, 10-bit, 12-bit
- Control: CEC, IP, or RS-232
- Can be used as an input on the Atlona AT-UHD-CLSO-824, CLSO-612ED, or AT-UHS-SW-5000ED switchers
- Provides auto switching
- HDMI In & HDBaseT Out: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
- 2 1 HDBaseT switcher
- 2 gang size
- Color: White
- Warranty: 10 years
- Specs for the AT-UHD-EX-100CE-RX-PSE
- HDBaseT HDMI receiver
- Resolution: Up to 4K60 4:2:0
- Receives video and control, sends power
- Audio: Embedded
- Bandwidth: 10.2Gbps
- Distance: Receives HDMI signals up to 328' at 1080P with CAT5e/6 or 4K/UHD using CAT6a/7 cable
- HDCP 2.2 compliant
- EDID support
- Allows any multi-channel audio stream to be used within a professional audio system
- Color Depth: 8-bit, 10-bit, 12-bit
- Dimensions: 1 x 4.3 x 3 inches
- Audio Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
- Warranty: 10 years
- Includes: Mounting brackets and power supply
